ABP Scaffolding
ABP Scaffolding

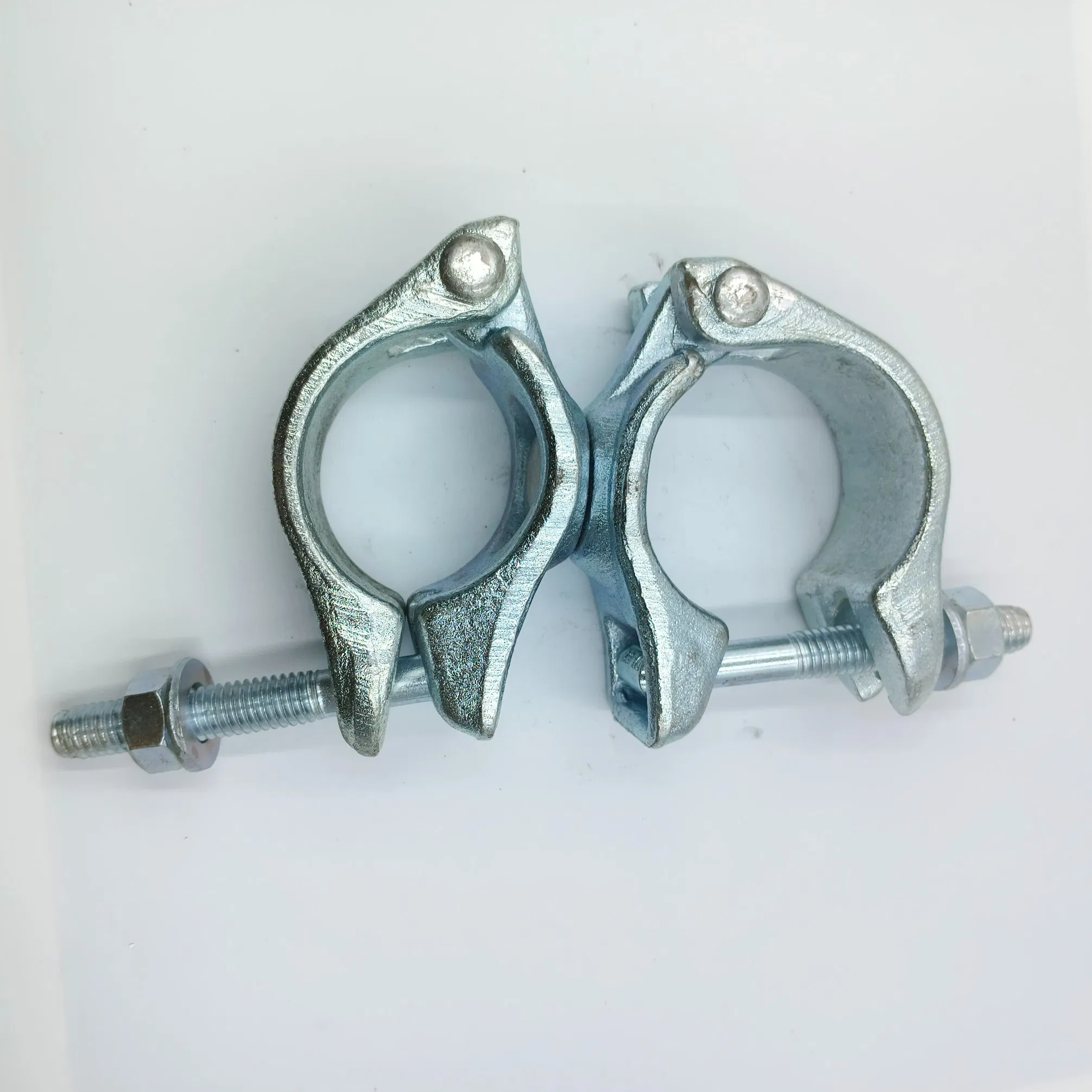

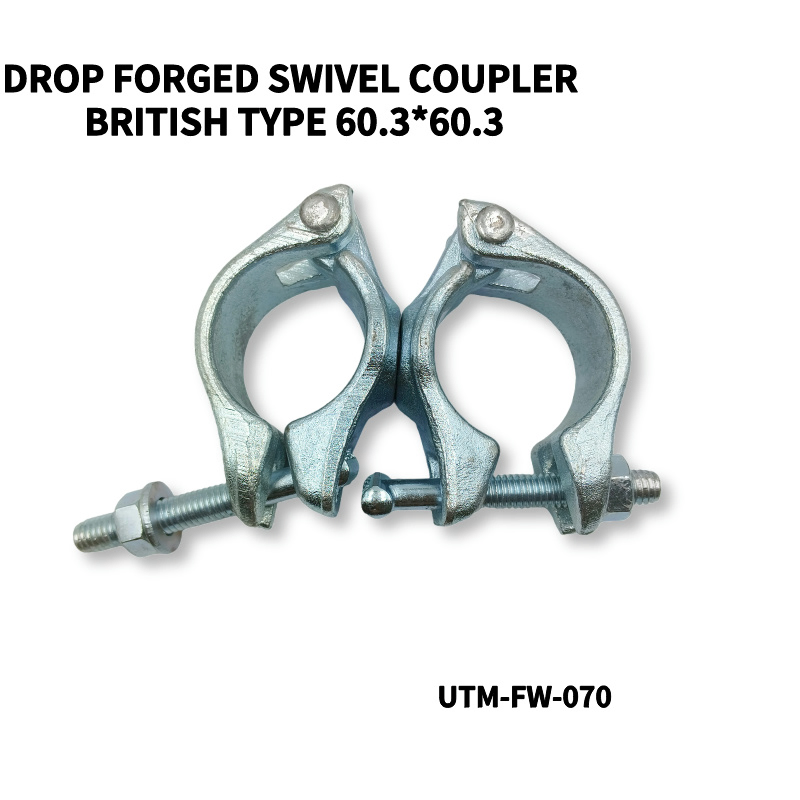

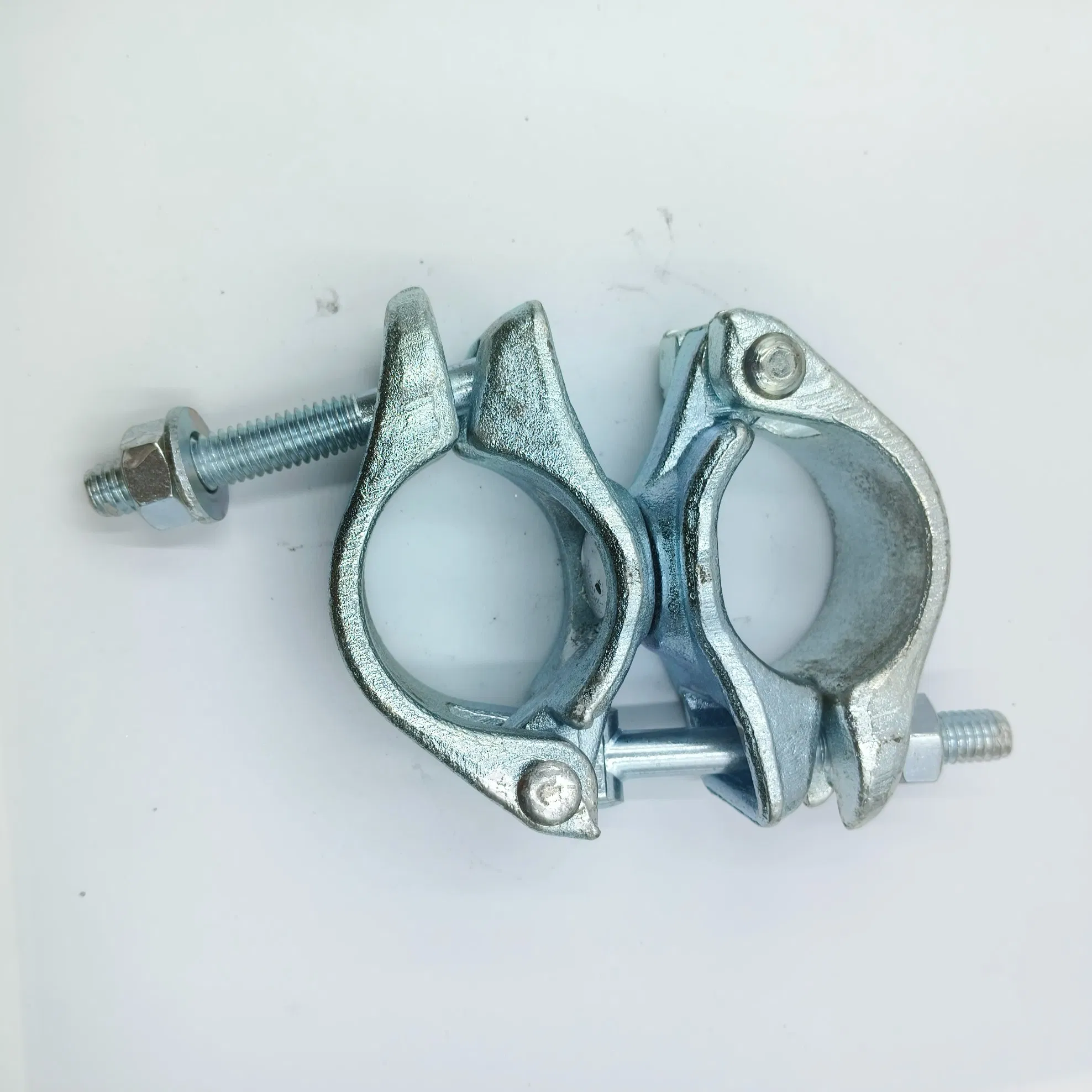

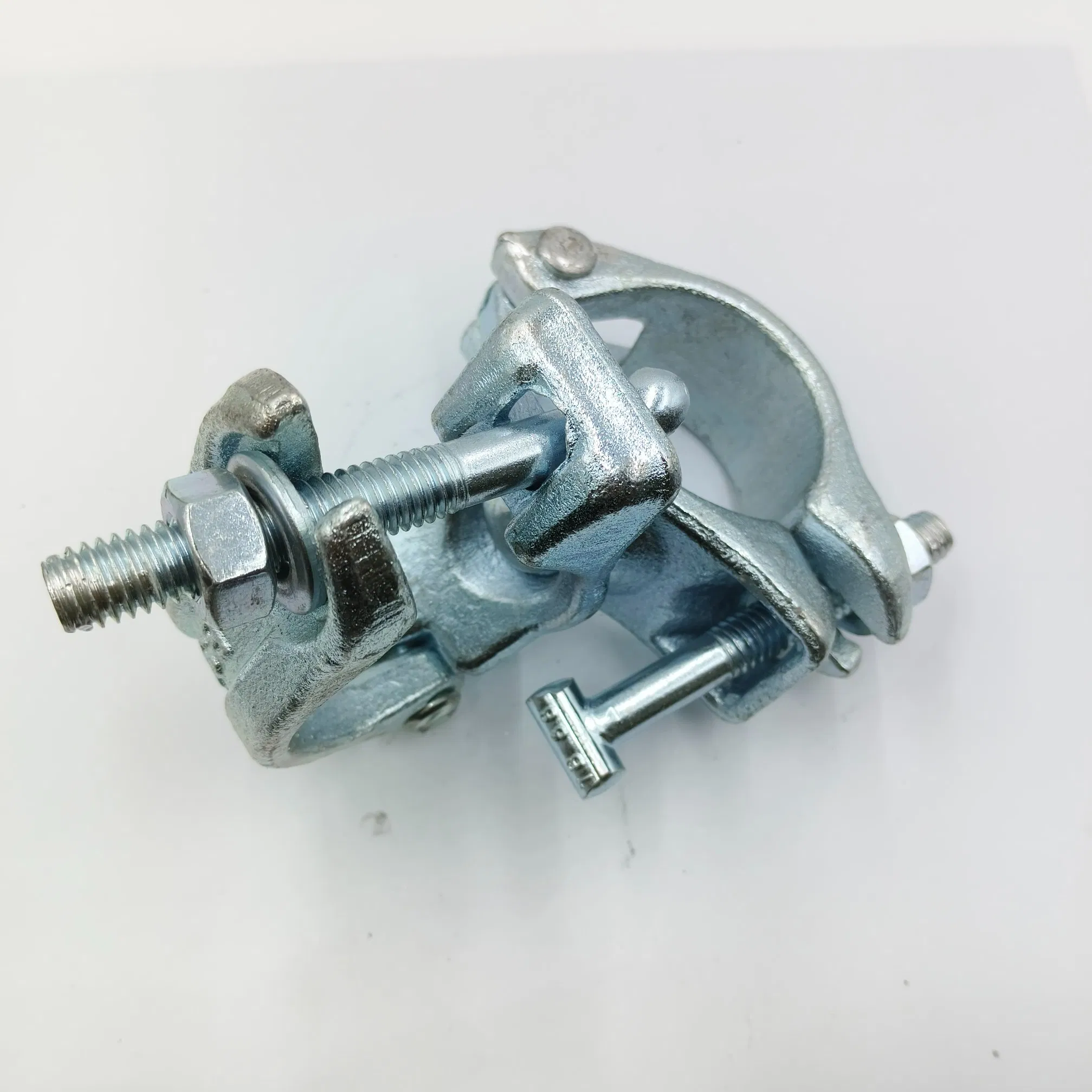

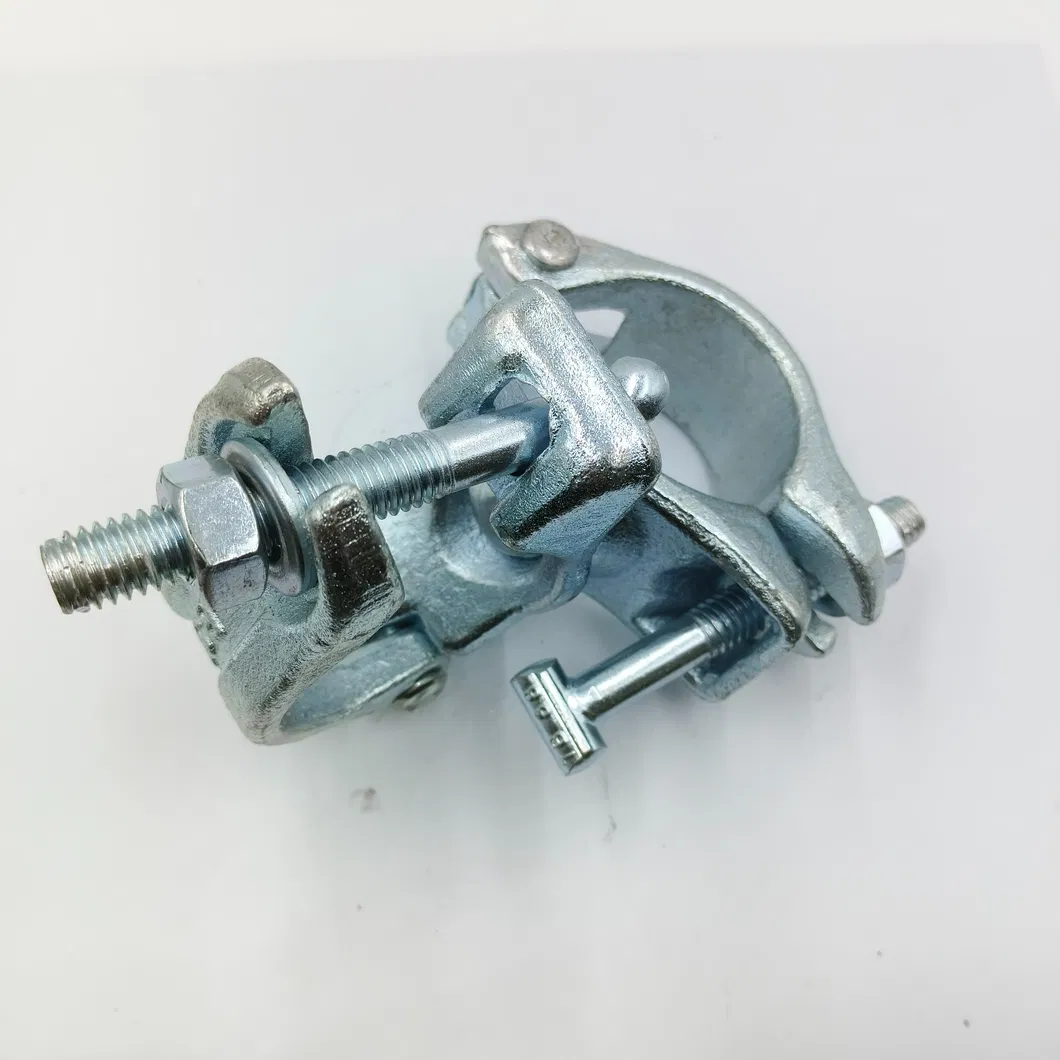

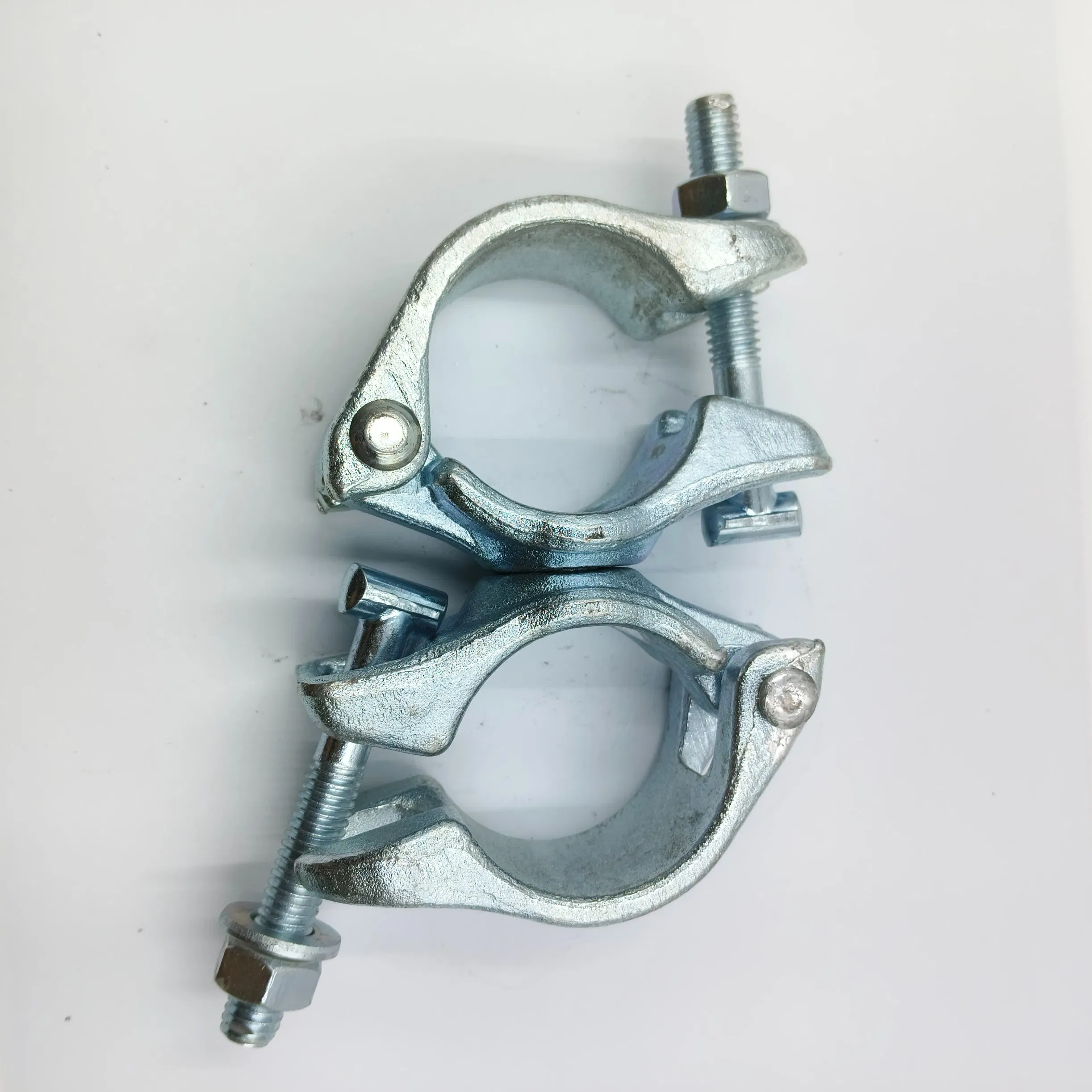

Scaffold Swivel Coupler/Clamp is used for connecting two 60.3mm tubes at any angle. This premium fitting is engineered for adding diagonal bracing across all classes of scaffolding systems, lighting rigs, staging set-ups, and protective guard rails. It is available in high-strength pressed steel or heavy-duty drop forged variants.
The direct structural connection between our forged couplers and the main support frames of scaffolds is secured through rigid locking structures, making them exceptionally suited for large-span engineering projects.
These couplers are engineered for swift assembly and effortless disassembly. Their robust material qualities support multiple reuse cycles, maximizing equipment operating rate and decreasing standard build costs.
| Parameter / Option | Technical Specification details |
|---|---|
| Material Specification | Premium Structural Q235 Steel |
| Quality Standards | BS1139, EN74-1 Compliance |
| Surface Finish Options | Zinc Plated, Hot Dipped Galvanized, Gold Chromate, or Self-Coloured |
| Processing Type | British Type Drop Forged / Heavy Pressed |
| Weight Options | Fully customizable according to requirements |
| Bolt Thread Options | 1/2", M14 Thread Sizes |
| Compatible Hex Nuts | 17mm, 19mm, 21mm, 22mm, 23mm |
| Certificates | ISO9001:2000, CE, SGS Inspection Approvals |

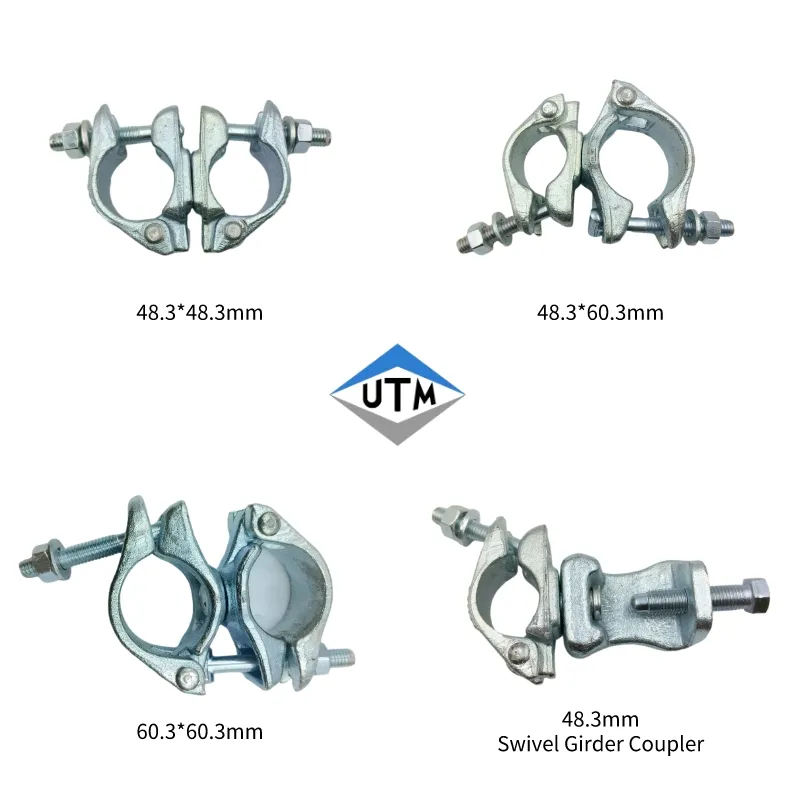

| Double Coupler Sizing | Swivel Coupler Sizing |
|---|---|
| 48.3mm * 48.3mm | 48.3mm * 48.3mm |
| 38.0mm * 48.3mm | 38.0mm * 48.3mm |
| 48.3mm * 60.3mm | 48.3mm * 60.3mm |
| 48.3mm * 89.0mm | 48.3mm * 89.0mm |
| 48.3mm * 63.0mm | 48.3mm * 63.0mm |
| 48.6mm * 48.6mm | 48.6mm * 48.6mm |
| 60.3mm * 60.3mm | 60.3mm * 60.3mm |
Our advanced production facilities and systematic testing protocols guarantee international quality standard compliance for safety-critical hardware.
We are a dedicated scaffolding production, engineering, and global sales enterprise. Backed by over 16 years of intensive industry experience, our products possess full EN, BS, and AS certifications. Our high-performance systems are widely exported to construction hubs in the United States, the United Kingdom, Australia, the United Arab Emirates, Saudi Arabia, Singapore, and various European markets.

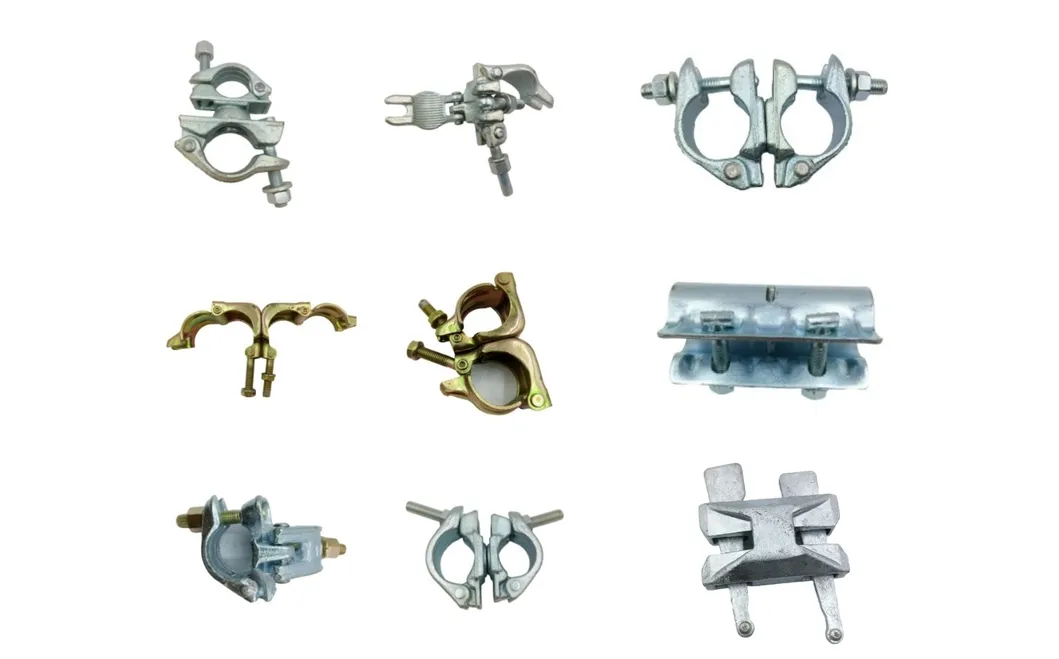

Our primary product groups feature Ringlock modular systems, lightweight Aluminum tower systems, and heavy-duty structural accessories. We have built strong capability in crowd seating design, public stage systems, and fall-prevention edge barriers. In addition, we design and manufacture couplers, Cuplock frames, Kwikstage components, supporting screw jacks, and standard base plates.

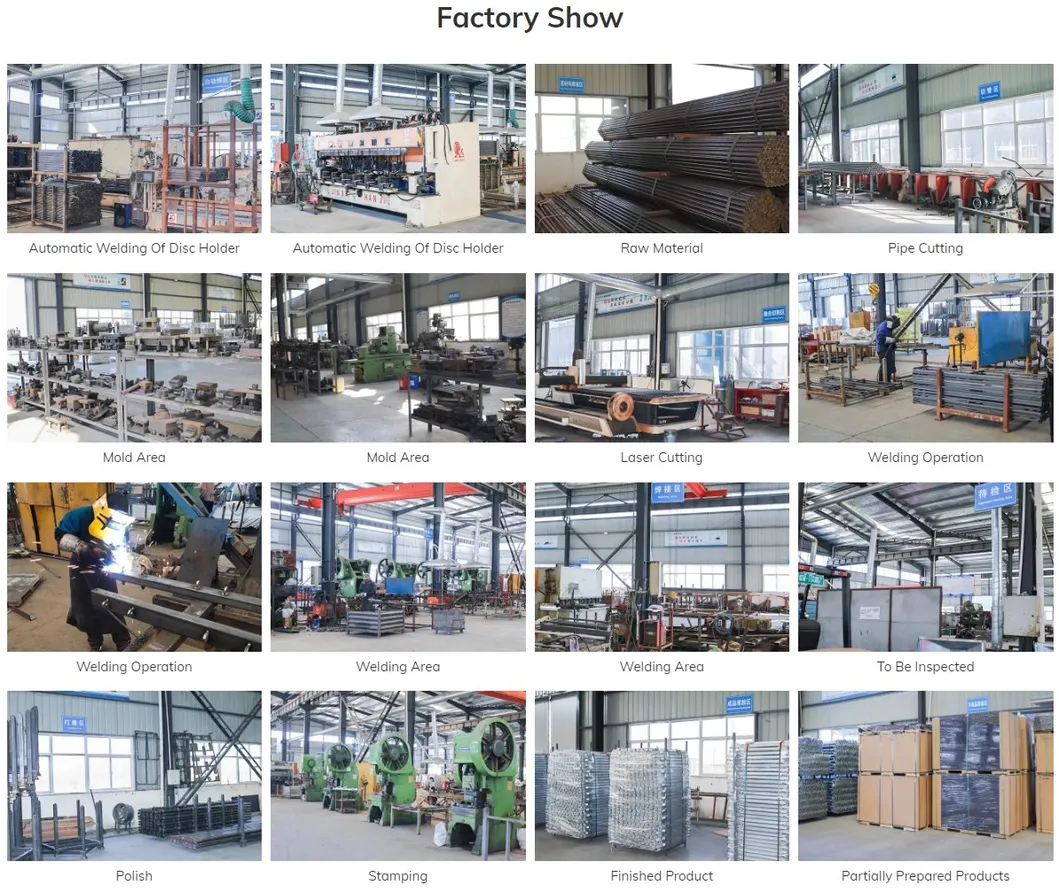

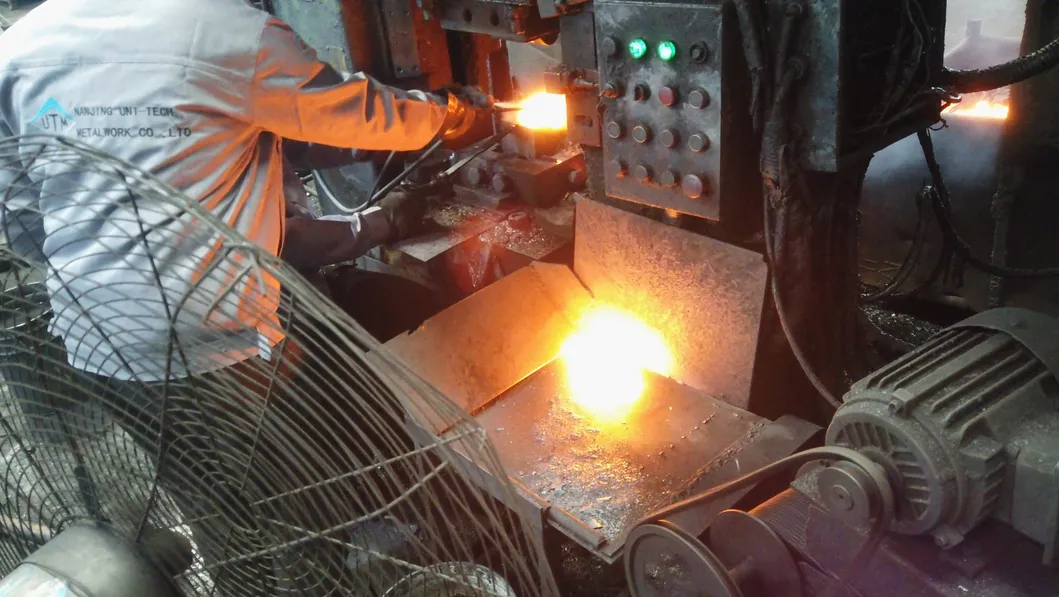

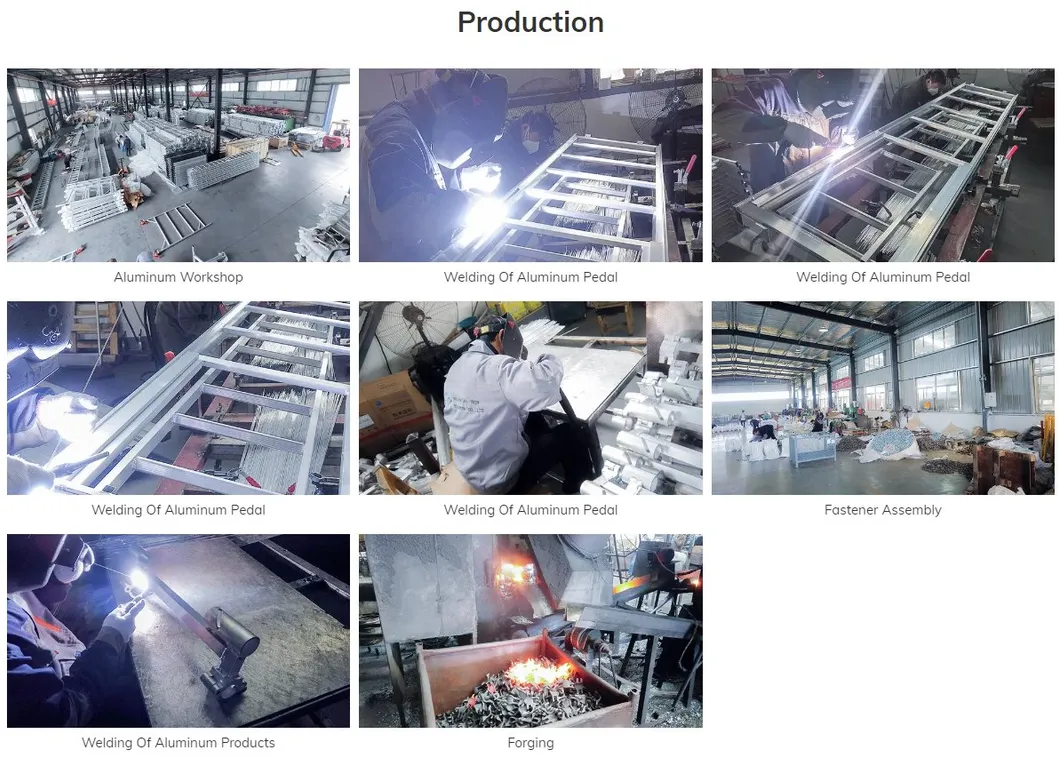

We remain focused on our clients' complex project requirements. By enforcing rigid manufacturing tolerances, our team monitors each stage of production—from alloy supply selection, laser cutting, stamping, robotic welding, and galvanizing, to final shipping preparation.
We offer complete client-focused service packages, keeping our processing desks open 24 hours a day to log technical requirements, offer immediate updates, and supply after-sales layout assistance. Our structural designers also offer complete 3D engineering models and virtual on-site scaffolding assembly guides to ensure precise installation.
All orders are systematically bundled using robust steel strapping, protective wraps, and heavy-duty wooden palettes. This strict packaging process ensures complete stability, easy crane unloading, and complete item safety during standard intercontinental ocean freight operations.

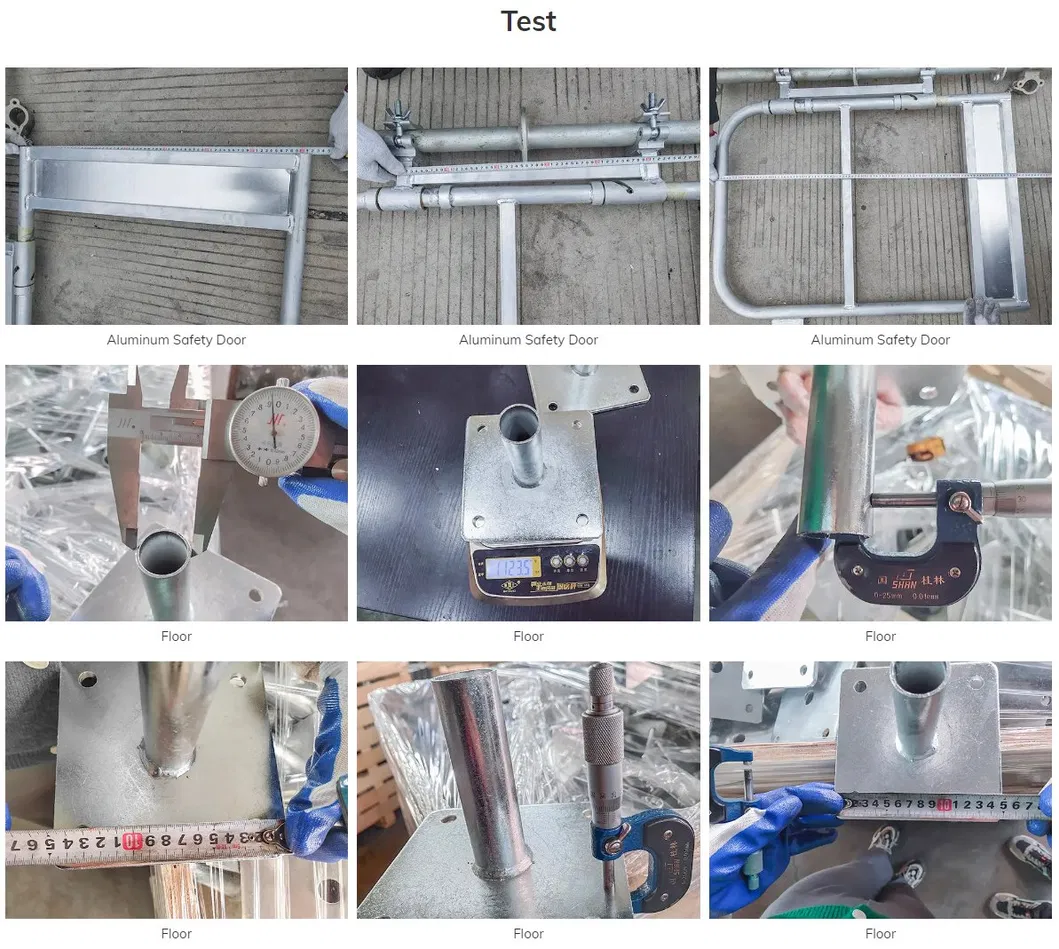

All scaffolding products undergo thorough mechanical property testing prior to dispatch. Every production batch is logged in our traceability database. If you experience any technical or physical issues with your items, kindly provide photos and videos of the components. Our service team will promptly assess the details to offer a quick replacement or mutually agreed compensation.
We generally accept T/T (Telegraphic Transfer) and L/C (Letter of Credit). Other flexible payment terms can be negotiated during order finalization.
Under normal parameters, we prioritize full container load orders. However, for specific accessory configurations or unique technical projects, we are always open to negotiating customized batch volumes directly with clients.
Yes. We can place permanently embossed markings, engraved logos, or high-durability labels directly on your ordered scaffolding couplers and steel accessories to match your brand requirements.
Once your order requirements and payment details are confirmed, we create a strict timeline schedule that ensures the production process meets your desired port delivery dates without compromising safety.
Yes. Our senior engineering department is equipped to build custom blueprints, 2D specifications, and structural CAD scaffolding design sheets to support your site-specific layout demands.
