High-Precision Forged and Cast Solutions for Cuplock Systems
Understanding the Critical Role of Top Cups and Ledger Blades in Modern Engineering

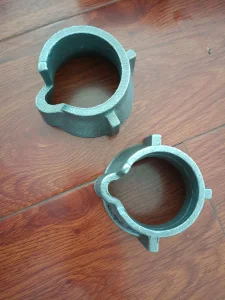

The Top Cup is the locking mechanism of the Cuplock system. Typically manufactured via malleable casting or drop forging, it is designed to slide down the vertical standard and rotate to lock up to four ledgers simultaneously. Our top cups utilize high-grade Q235 steel, ensuring they withstand repeated mechanical stress without deformation.

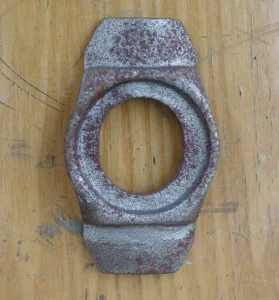

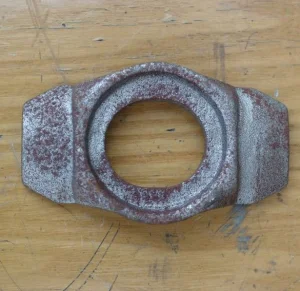

The Ledger Blade (or ledger end) is the component welded to the horizontal ledger. Its unique profile allows it to fit perfectly into the bottom cup before being secured by the top cup. We employ advanced drop forging techniques to eliminate internal voids, providing superior tensile strength compared to traditional cast versions.
The "Cup-Lock" principle eliminates the need for loose fittings like bolts and nuts. This reduction in components directly minimizes the risk of human error during assembly, making it the preferred choice for nuclear power and petrochemical sites where safety is non-negotiable.
The global scaffolding market is shifting towards modular systems. Cuplock technology remains the industry standard in the UK, Middle East, and Southeast Asia due to its versatility and speed of erection. As a leading Cuplock Top Cup and Blade Supplier, Shandong ABP Scaffolding Co., Ltd. is at the forefront of this transition.
Your Trusted Partner in Forged Scaffolding Fasteners & Solutions
Shandong ABP Scaffolding Co., Ltd. is an export-oriented enterprise integrating production, sales, and service of scaffolding components and fasteners. We specialize in the manufacture of a wide range of forged scaffolding fasteners, including:
Our products are manufactured in strict accordance with international standards such as EN74 and BS1139. We adhere to the philosophy of “survive by quality, develop by innovation.”
The Evolution of Scaffolding Hardware in the Era of Industry 4.0
Research is currently focused on High-Strength, Low-Alloy (HSLA) steels for top cups. These materials offer higher yield strength while reducing the weight of the scaffolding system, facilitating faster assembly and lower transportation costs.
At Shandong ABP, we are transitioning to robotic forging lines. This ensures that every ledger blade has 100% dimensional consistency, which is critical for the "tight fit" required in high-load bearing Cuplock configurations.
The future of Cuplock Top Cup and Blade production lies in eco-friendly surface treatments. We are moving towards Chrome-VI free galvanization and high-performance powder coatings that exceed salt-spray test requirements for offshore applications.
Where Reliability Meets Structural Complexity
In explosive environments, the non-sparking potential and extreme stability of Cuplock are vital. Our Hot-Dip Galvanized cups provide the necessary corrosion resistance for coastal refineries.
The spatial constraints within ship hulls require a modular system that can be adapted quickly. The Cuplock top cup allows for 90-degree ledger connections, optimizing workspace in tight maritime corridors.
For heavy-duty shoring projects, the ledger blade must transfer loads efficiently to the standards. Our forged blades ensure maximum surface contact, increasing the permissible axial load of the entire scaffold tower.
Expert Insights into Cuplock Scaffolding Accessories
Complete Your System with Our Certified Accessories
