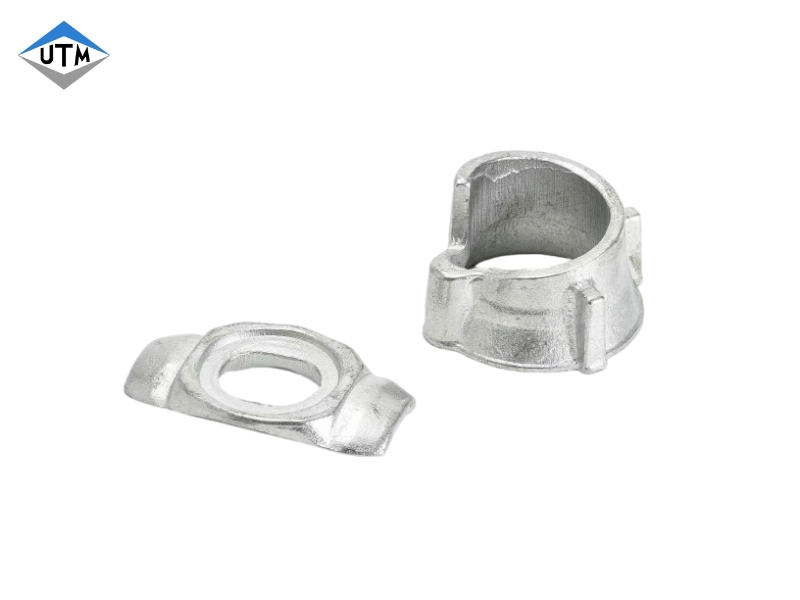

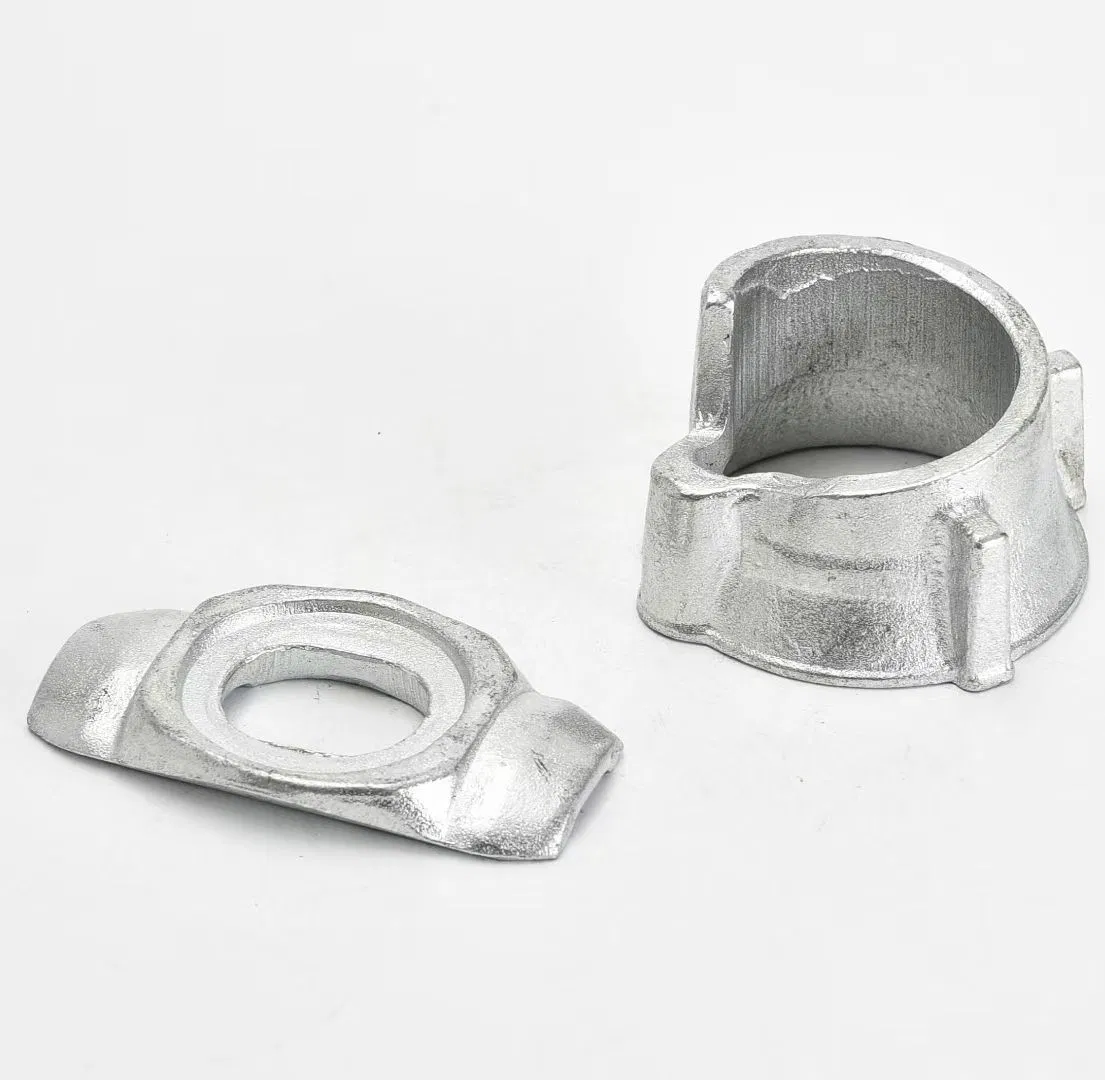

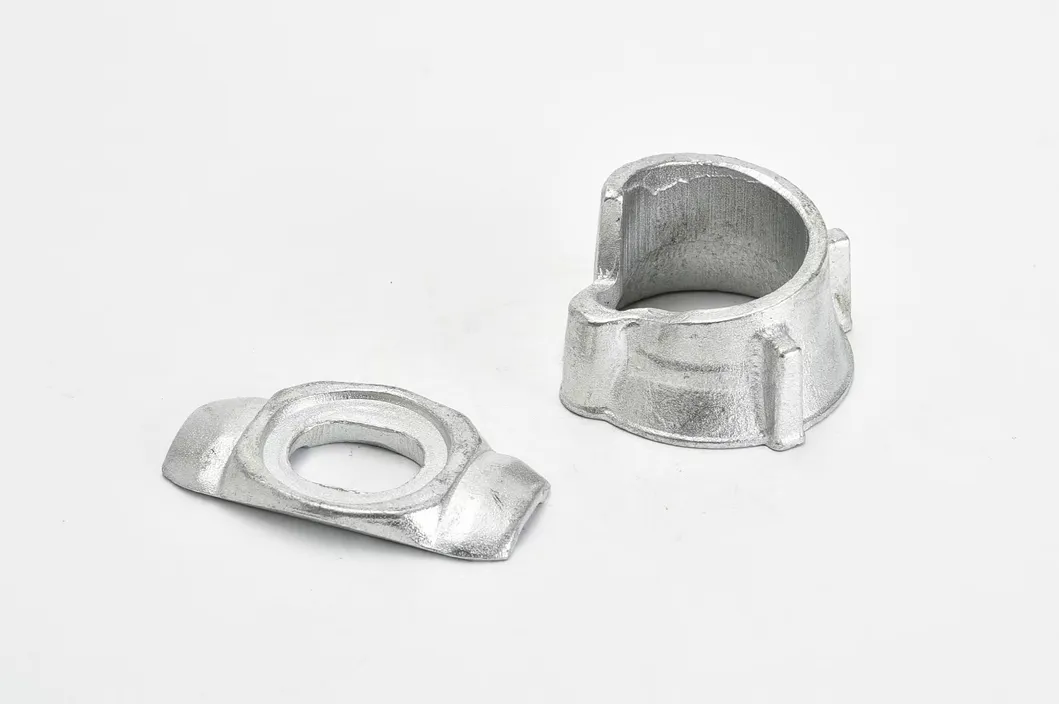

Cuplock scaffolding accessories top cup bottom cup and blade

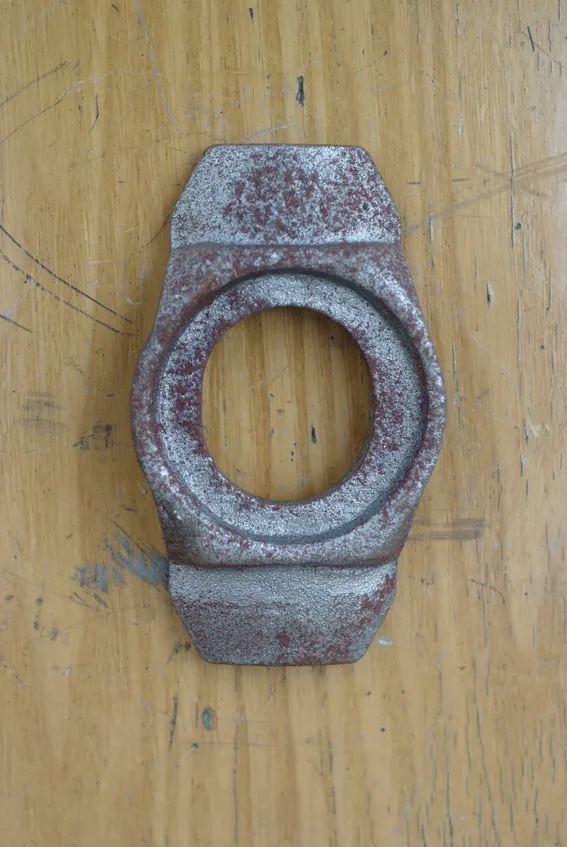

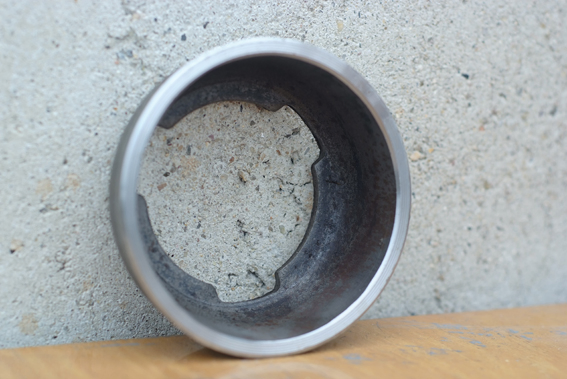

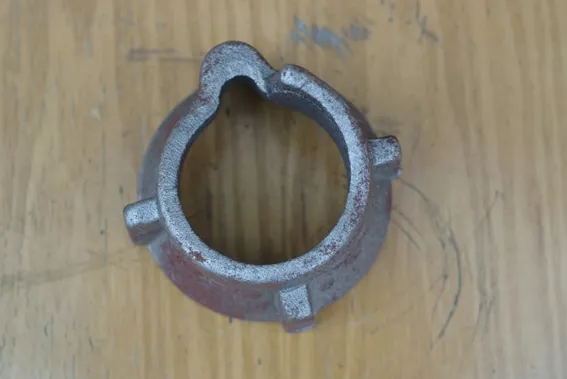

The Cuplock Scaffolding Top Cup is a fundamental component in the construction field. It plays a crucial role in securely connecting vertical standards and horizontal ledgers in cuplock scaffolding systems. The cuplock blades are welded ends of cuplock scaffolding ledger, which can be inserted in the top cups of the cuplock standard.
| Material | Steel Q235 |
|---|---|
| Surface Treatment | Hot Dip Galvanized |
| Standard | EN74/BS1139/AS1576 |
| Certificate | CE Certificate / SGS |

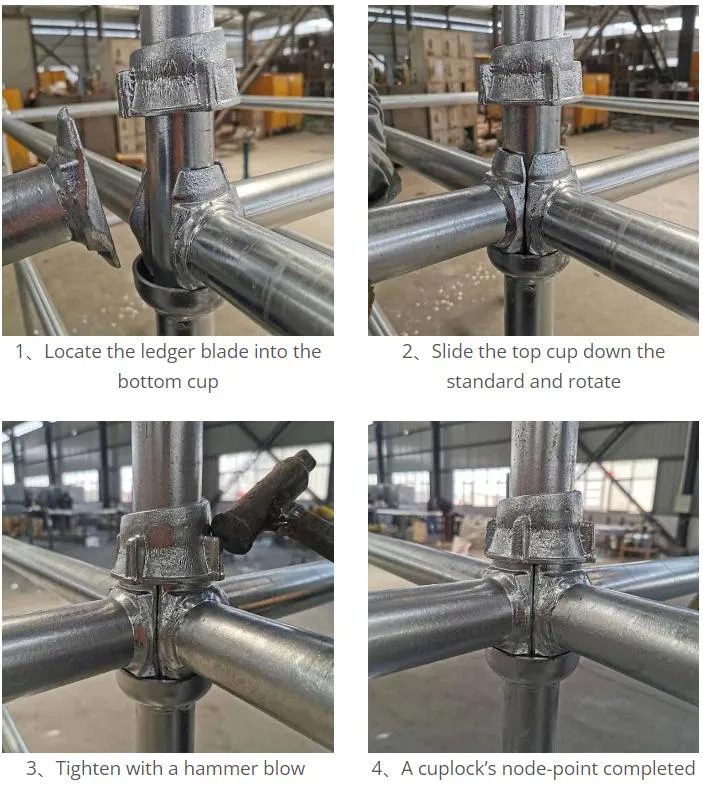

Cuplock node is revolutionary, making it faster and easier to erect than any other scaffolding. It uses the "Cup" and "Blade" to lock the vertical and horizontal together by rotating the top cup. On the standard, each top cup has a limited position pin to ensure the ledger is locked tightly at the right place.
| Features | Details |
|---|---|
| Easy to Stand | No nut and bolt or wedge, just lock the blade into cup. |
| Simple | Fast and simple to erect with only four component fastenings. |
| Light Weight | 3.2mm thickness high grade steel, 20% lighter than standard 4mm tubes. |

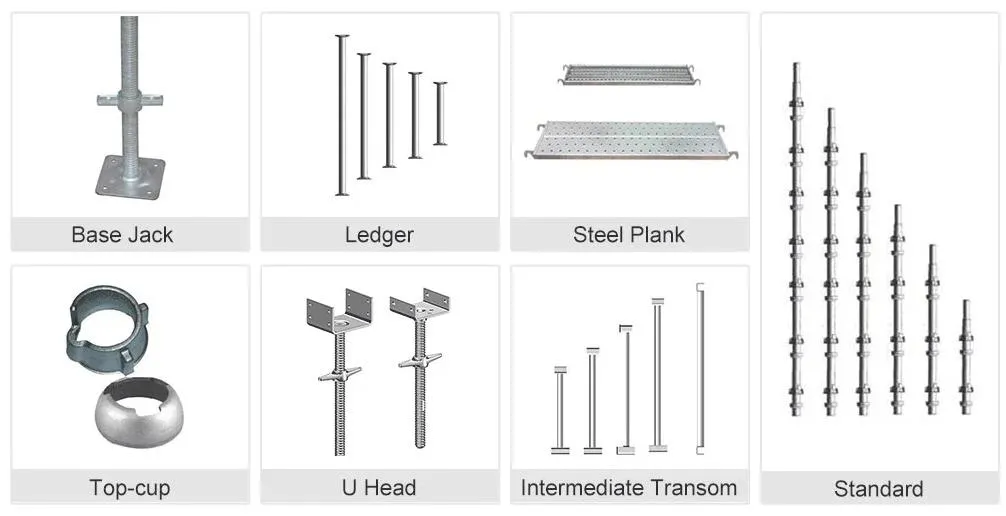

| Economical | System uses only three main components. |
| Fast | 30%-50% faster than traditional scaffolding. |
| Durable | Hot-Dip-Galvanized provides low maintenance and long life. |
| Versatile | 500mm cup intervals for Facade, Shoring, Staircases, and Mobile Towers. |
Used in advertising, painting ceilings, building construction, cleaning, repairing, bridging frames, and stage racks.
