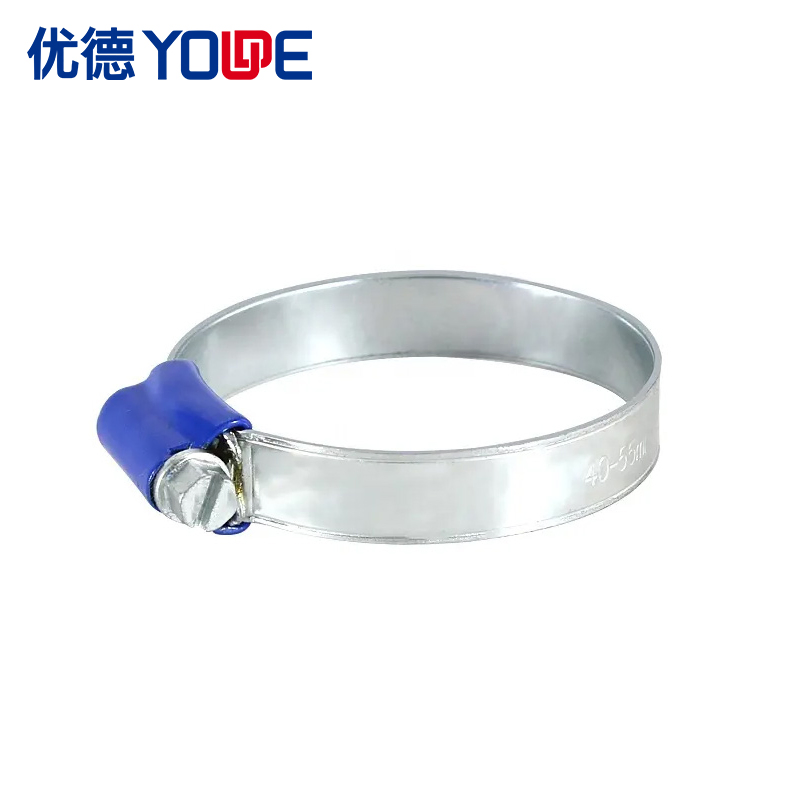

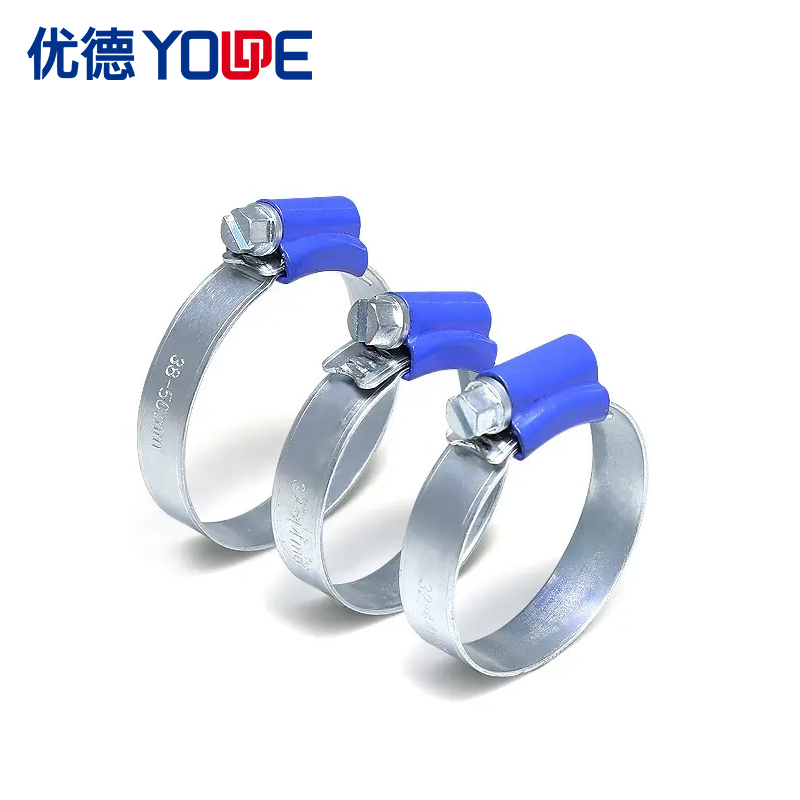

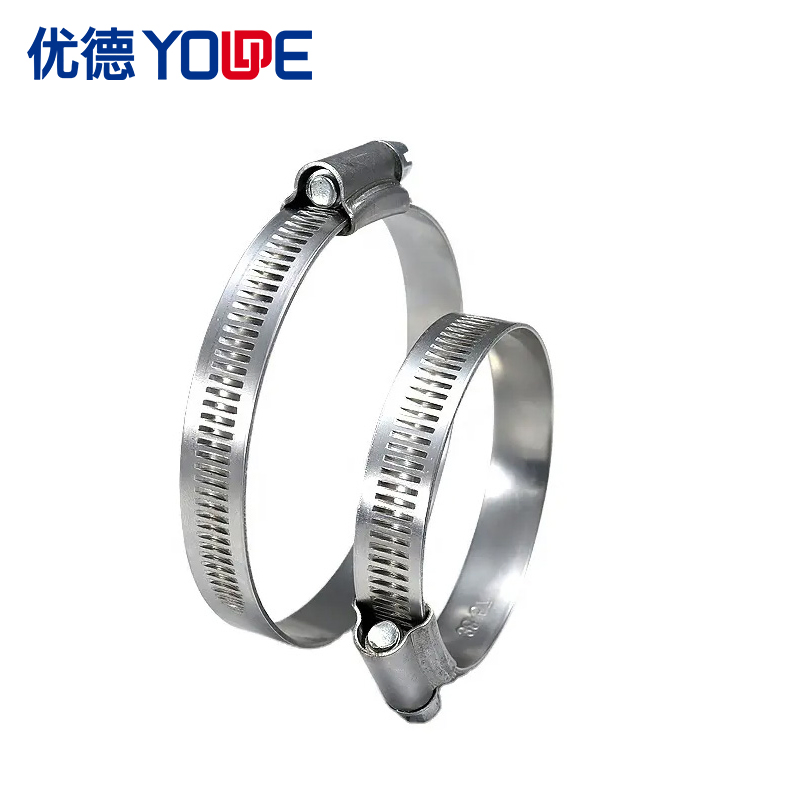

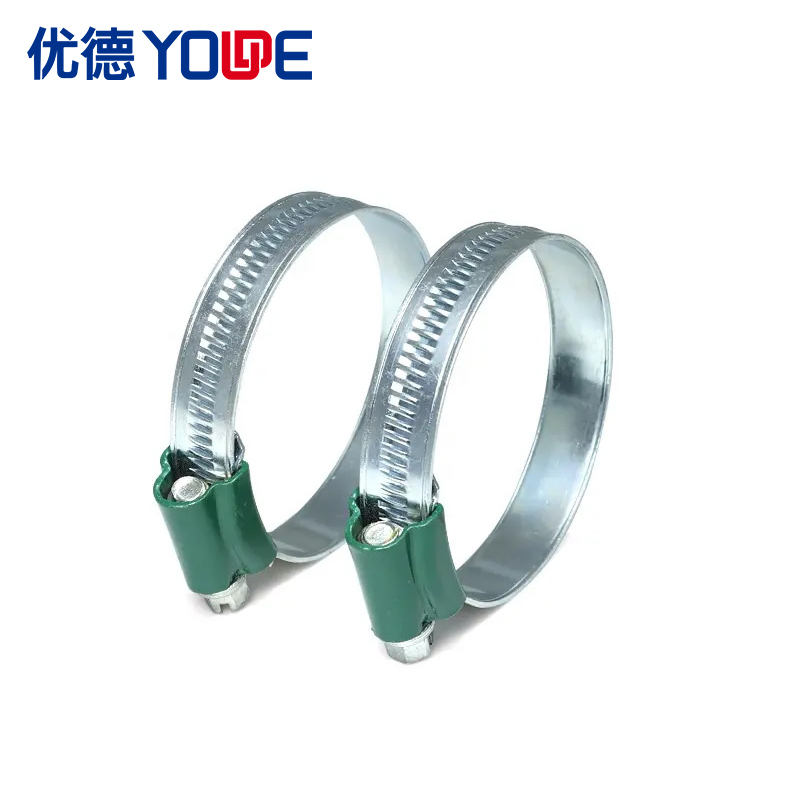

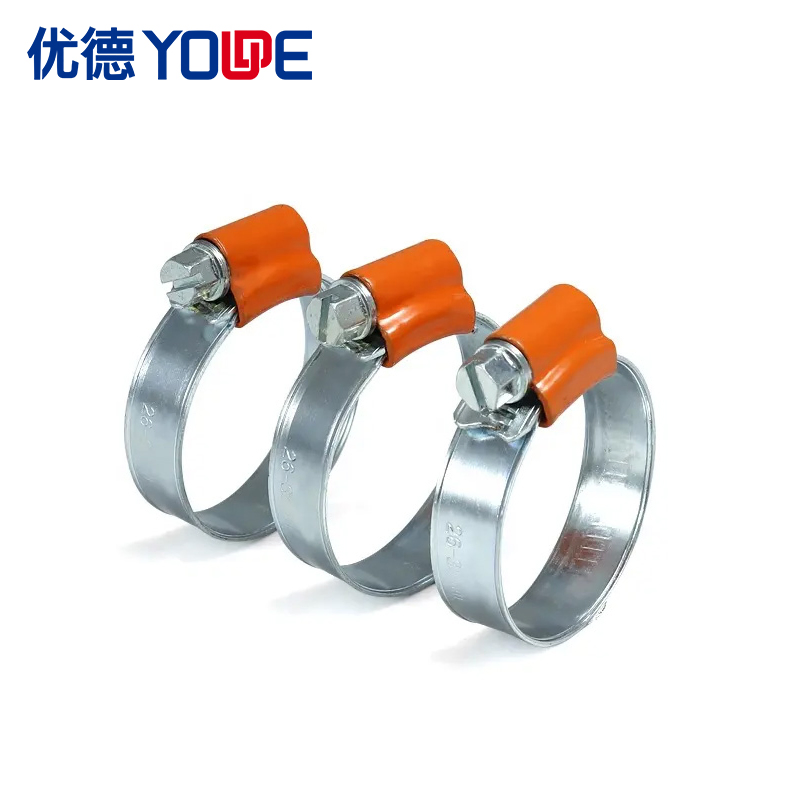

Customized 12mm British Type Cord Clamp Stain Steel Galvanized Adjustable Swivel Clamp for Clipper Hose Metric Inch Measurement
Customized 12mm British Type Cord Clamp Stain Steel Galvanized Adjustable Swivel Clamp for Clipper Hose Metric Inch Measurement
Customized 12mm British Type Cord Clamp Stain Steel Galvanized Adjustable Swivel Clamp for Clipper Hose Metric Inch Measurement
Customized 12mm British Type Cord Clamp Stain Steel Galvanized Adjustable Swivel Clamp for Clipper Hose Metric Inch Measurement
Customized 12mm British Type Cord Clamp Stain Steel Galvanized Adjustable Swivel Clamp for Clipper Hose Metric Inch Measurement
1 / 5
Customized 12mm British Type Cord Clamp Stain Steel Galvanized Adjustable Swivel Clamp for Clipper Hose Metric Inch Measurement
Customized 12mm British Type Cord Clamp Stain Steel Galvanized Adjustable Swivel Clamp for Clipper Hose Metric Inch Measurement
Customized 12mm British Type Cord Clamp Stain Steel Galvanized Adjustable Swivel Clamp for Clipper Hose Metric Inch Measurement
Customized 12mm British Type Cord Clamp Stain Steel Galvanized Adjustable Swivel Clamp for Clipper Hose Metric Inch Measurement
Customized 12mm British Type Cord Clamp Stain Steel Galvanized Adjustable Swivel Clamp for Clipper Hose Metric Inch Measurement

Customized 12mm British Type Cord Clamp Stain Steel Galvanized Adjustable Swivel Clamp for Clipper Hose Metric Inch Measurement

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

British Type Hose Clamp Overview

Basic Info

Connection Riveting
Surface Treatment Galvanized Sheet
Head Type Round
Product Name British Type Hose Clamp
Usage Plumbing, Automotive, Irrigation, Household
Band Width 9.7mm, 11.7mm
Productivity 10000PCS/Day
Thickness 0.6mm
Type Perforated Hose Clamp
Transport Package Box / Bulk / Pallet / Custom
Specification 8-14mm to bigger, customized
HS Code 73269090
Production Capacity 10000PCS/Day
Package Size 10.00cm * 10.00cm * 10.00cm
Package Gross Weight 1.000kg

Specification

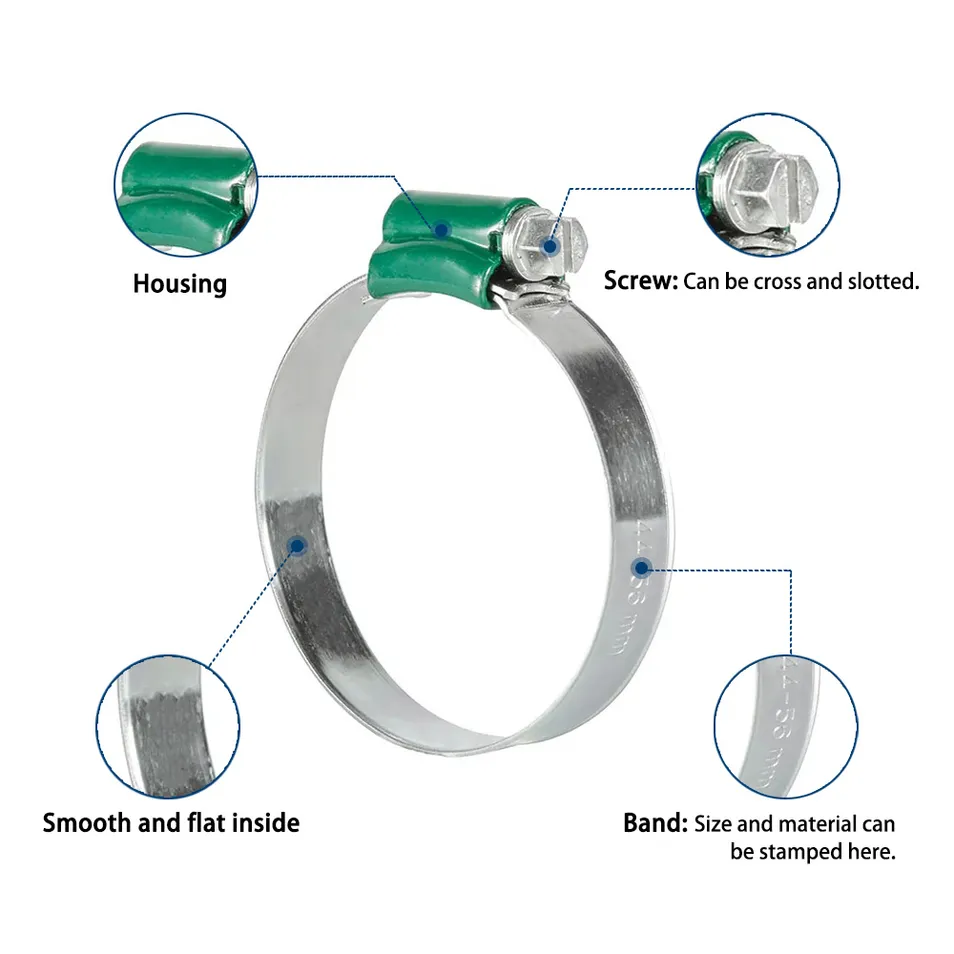

Hose Clamp Specification Detail

Product Description

  • Name: British Type Hose Clamp.
  • Structure: Band, housing and screw.
  • Surface treatment: Zinc plated.
  • Screw shape: Cross, slotted.
  • Application: Widely used for connecting hoses of automobile pipelines, water pumps, fans, food machinery, chemical machinery and other industries.
  • Material: W1, W4, W5 (See as below)
  • Features:
    • Superior corrosion resistance.
    • The punched perforated band enables clamps to install easily and hold tightening.
    • Multi-clamping range.
    • Logo can be stamped on the housing or band as customer request.

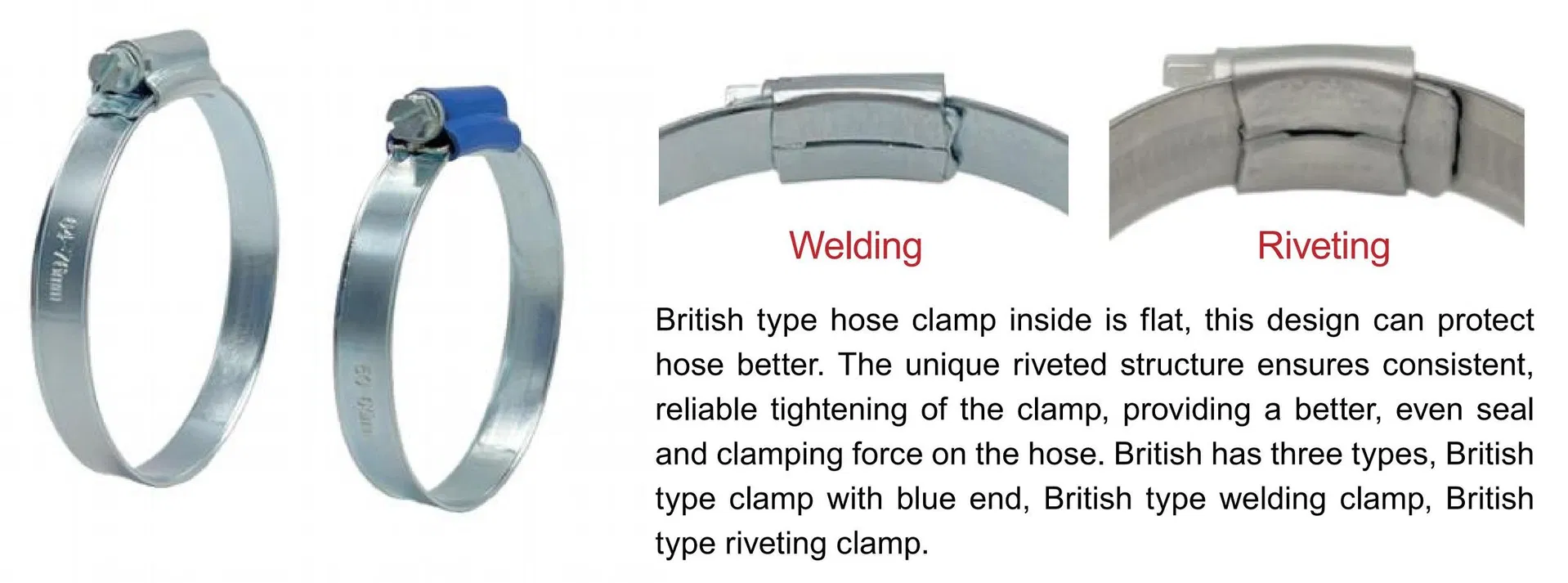

Measurement details diagram
UD No. Size Size (mm) Width Housing Length Pcs/Ctn
9UDBT-913OOO9-139.7mm12mm1000
9UDBT-1316MOO13-169.7mm12mm1000
9UDBT-1319OO13-199.7mm12mm1000
12UDBT-1622O16-229.7mm12mm1000
12UDBT-1925OX19-259.7mm12mm1000
12UDBT-22291A22-299.7mm12mm500
12UDBT-22321A22-3211.7mm17mm500
12UDBT-2535125-3511.7mm17mm500
12UDBT-28411X28-4111.7mm17mm500
12UDBT-31482A31-4811.7mm17mm500
12UDBT-35512A35-5111.7mm20mm200
12UDBT-3854238-5411.7mm20mm200
12UDBT-44602X44-6011.7mm20mm200
12UDBT-44642X44-6411.7mm20mm200
12UDBT-5070350-7011.7mm20mm200
12UDBT-60803X60-8011.7mm25mm200
12UDBT-7090470-9011.7mm25mm200
12UDBT-831024X83-10211.7mm25mm200
12UDBT-95115595-11511.7mm25mm200
12UDBT-1001205X100-12011.7mm25mm200
12UDBT-1041276104-12711.7mm25mm200
12UDBT-1201406X120-14011.7mm25mm200
12UDBT-1301507130-15011.7mm25mm100
12UDBT-1401607x140-16011.7mm25mm100
Sizes can be adjusted as per inquiry.
Material Band Housing Screw
W1 Zinc plated steel Zinc plated steel Zinc plated steel
W4 304SS 304SS 304SS

Main Products

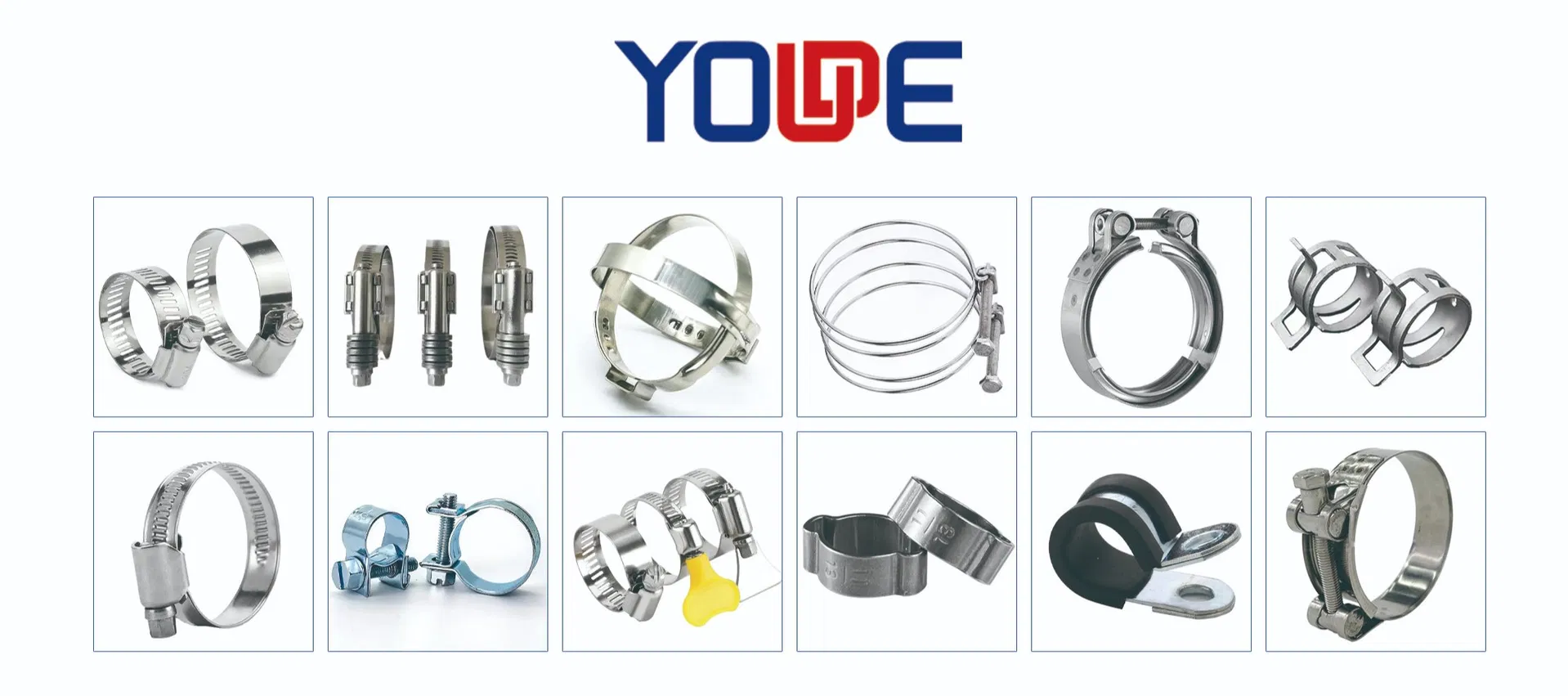

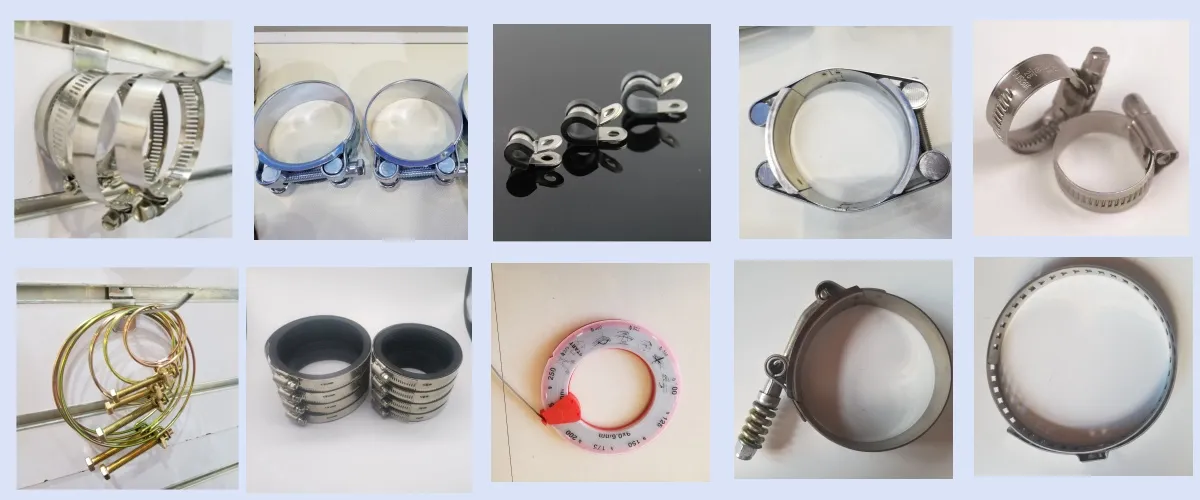

Main Products Catalog 1 Main Products Catalog 2

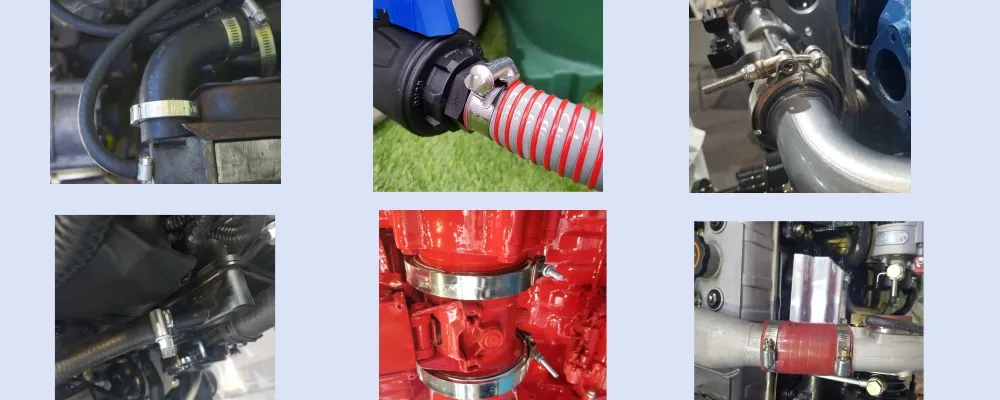

Application

Product Application Areas

Packing & Delivery

Packing details and warehouse preparation

Foreign Exhibition

Exhibition stands and international presence

Company Profile

We are a professional Chinese supplier of hose clamps located in the largest production base in China. With over 16 years of expertise in design, production, and global export, we produce worm drive hose clamps, heavy duty hose clamps, constant tension hose clamps, T bolt clamps, V band clamps, No-hub couplings and special clamps for automotive, industrial, hardware, plumbing, marine, heavy equipment, and agriculture industries.

Our technical team provides expert consultation and CAD drawings for customized solutions, while our modernized manufacturing workshops ensure precise quality control, competitive pricing, and reliable delivery timelines.

Secure connection, global solution is our goal. We are a partner that you can rely on for high-quality products and stellar services.

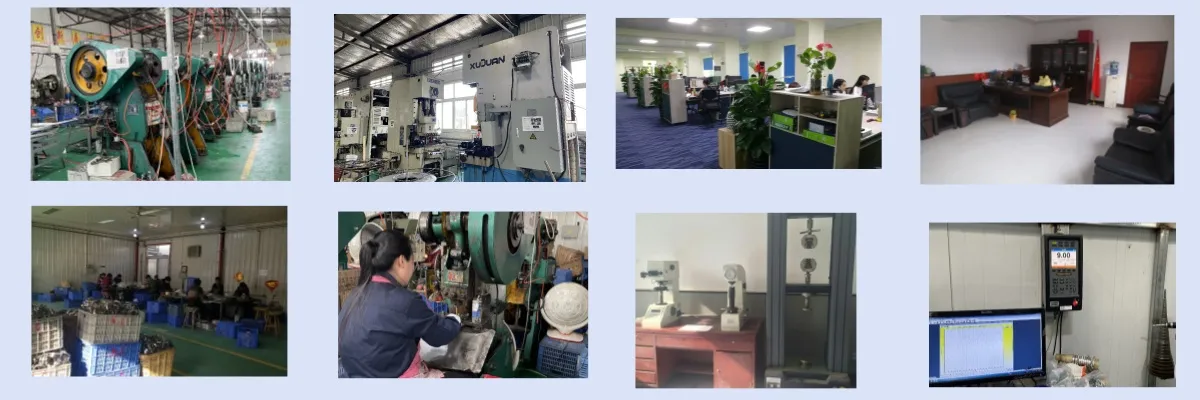

Production Facility Overview

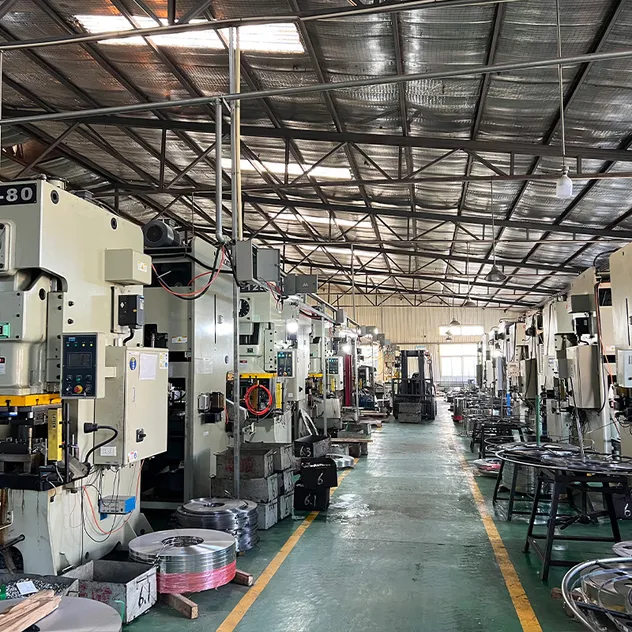

Production Process 1

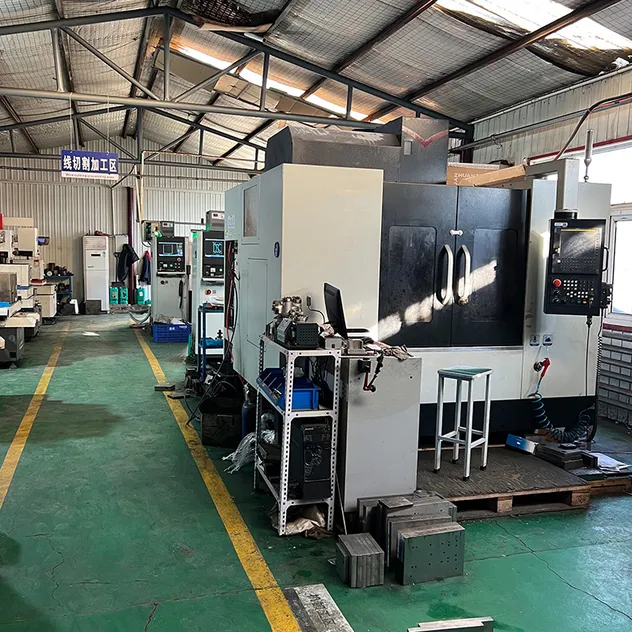

Production Process 2

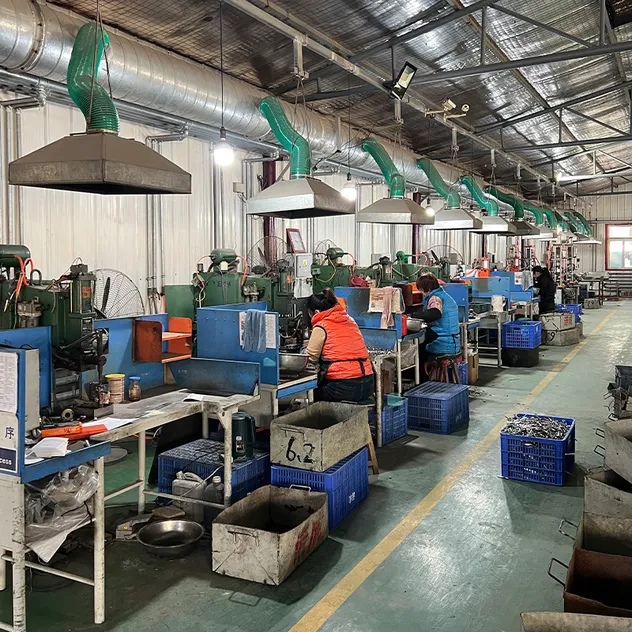

Production Process 3

Why Choose Us

01
We have comprehensive, solid experience to manufacture the exact products you need, spanning from normal standard quality up to high-end custom demands.
02
Every batch of material is strictly and carefully tested for compliance, including structural thickness, chemical composition, and exact hardness levels.
03
Smooth, burr-free borders to ensure safe manual handling and hassle-free, smooth installation processes.
04
Antirust performance with exceptional wear resistance. Our 304SS features remarkable oxidation resistance under humid environments.
05
We manufacture an extremely wide spectrum of sizes. Full, precise perforation bands are customizable according to specific parameters.
06
Ultra-smooth action: no-load torque remains under 0.6Nm for fast tool work, while high load torque capabilities surpass 7.5Nm for high-pressure clamping.
Advanced inspection and machinery

Frequently Asked Questions (FAQ)

What materials are available for your British Type Hose Clamps?
We offer different material grades depending on your application. W1 features completely zinc-plated carbon steel, while W4 utilizes high-grade 304 stainless steel for both the band, housing, and screw, providing exceptional corrosion resistance in wet or chemical conditions.
In what applications are these hose clamps typically used?
These hose clamps are highly versatile and widely applied in automotive pipeline setups, fluid pump configurations, fans, food processing machinery, chemical systems, household connections, plumbing, and agricultural/irrigation systems.
Can I request a custom size or design?
Absolutely. While our standard specification covers standard sizes from 8-14mm to 140-160mm, we can adjust sizes and execute specialized orders based on your technical requests. Our engineering team can also provide technical consulting and detailed CAD drawings to meet your requirements.
What is the advantage of the perforated band design?
The precisely punched perforated band provides a reliable, secure gear mesh for the screw threads. This allows for an extremely tight, slip-resistant grip when tightened, while maintaining highly consistent pressure around the hose structure.
How do you guarantee the quality of each batch?
Quality control is built directly into our manufacturing pipeline. We carefully test each batch of material for thickness, chemical elements, and surface hardness. Additionally, we check that all edges are burr-free to guarantee safety and smooth operations during manual installation.
Can we print our own brand logo on the hose clamps?
Yes, custom logos can be precisely stamped directly onto the housing or band of the hose clamps as requested by our customers. Let us know your design requirements during the initial consultation.
