ABP Scaffolding ABP Scaffolding

Industrial-Style Scaffold Girder Couplers Gravlock Light Beam Clamps and Couplers

Still deciding? Get samples of $ !
Request Sample

Product Description

📋 Basic Information
Model NO.
UTM-BC-027
Material
Steel Q235
Type
Girder Coupler
Structural Style
Multi-Pole Scaffolding
Standard
EN74-1 / BS1139
Supporting Mode
Projecting Scaffolding
Finish
Zinc Plate or Hot Dipped Galvanized
Size
For 48.3mm Pipe
Weight
1kg - 2.75kg
Technic
Drop Forged
🏗️ Product Description

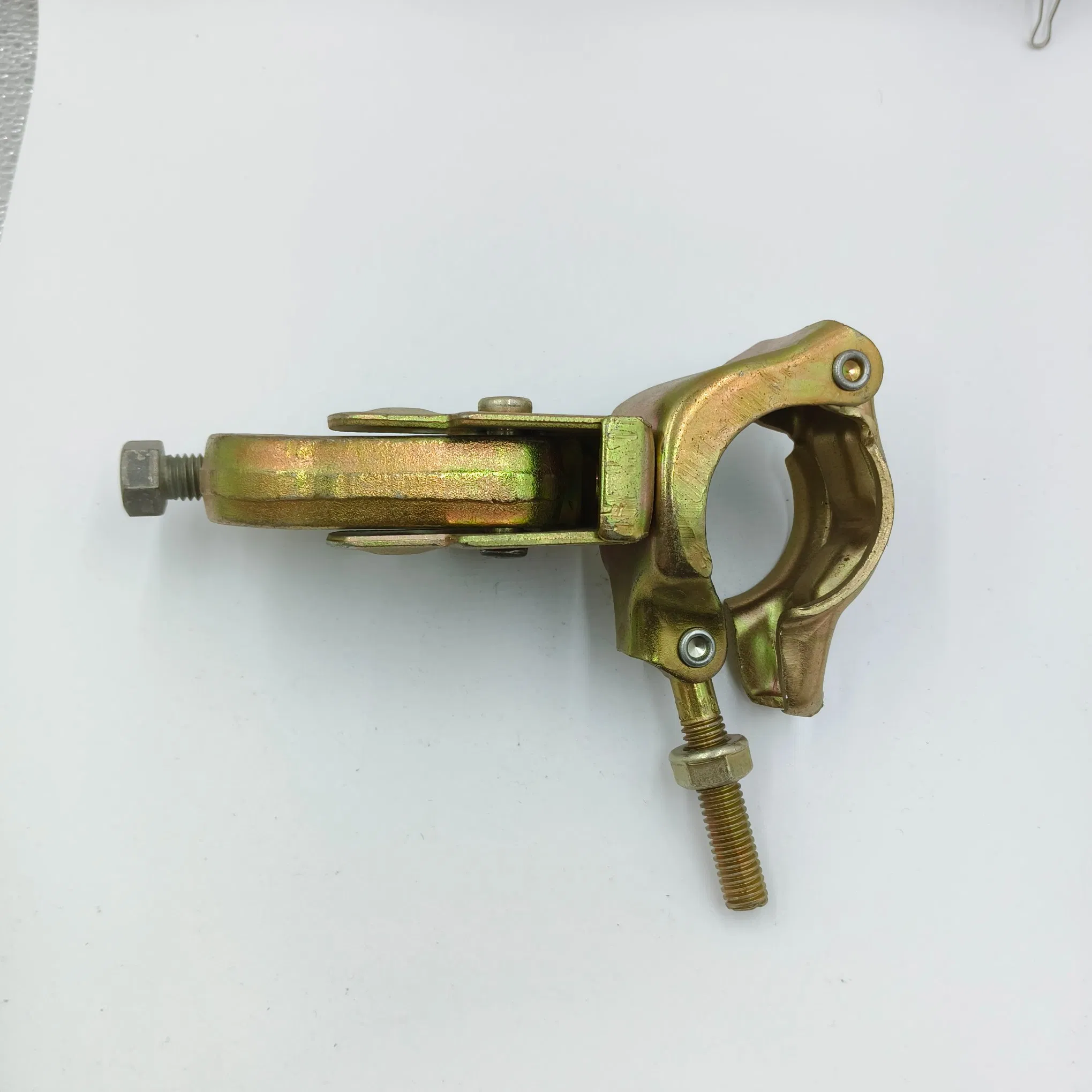

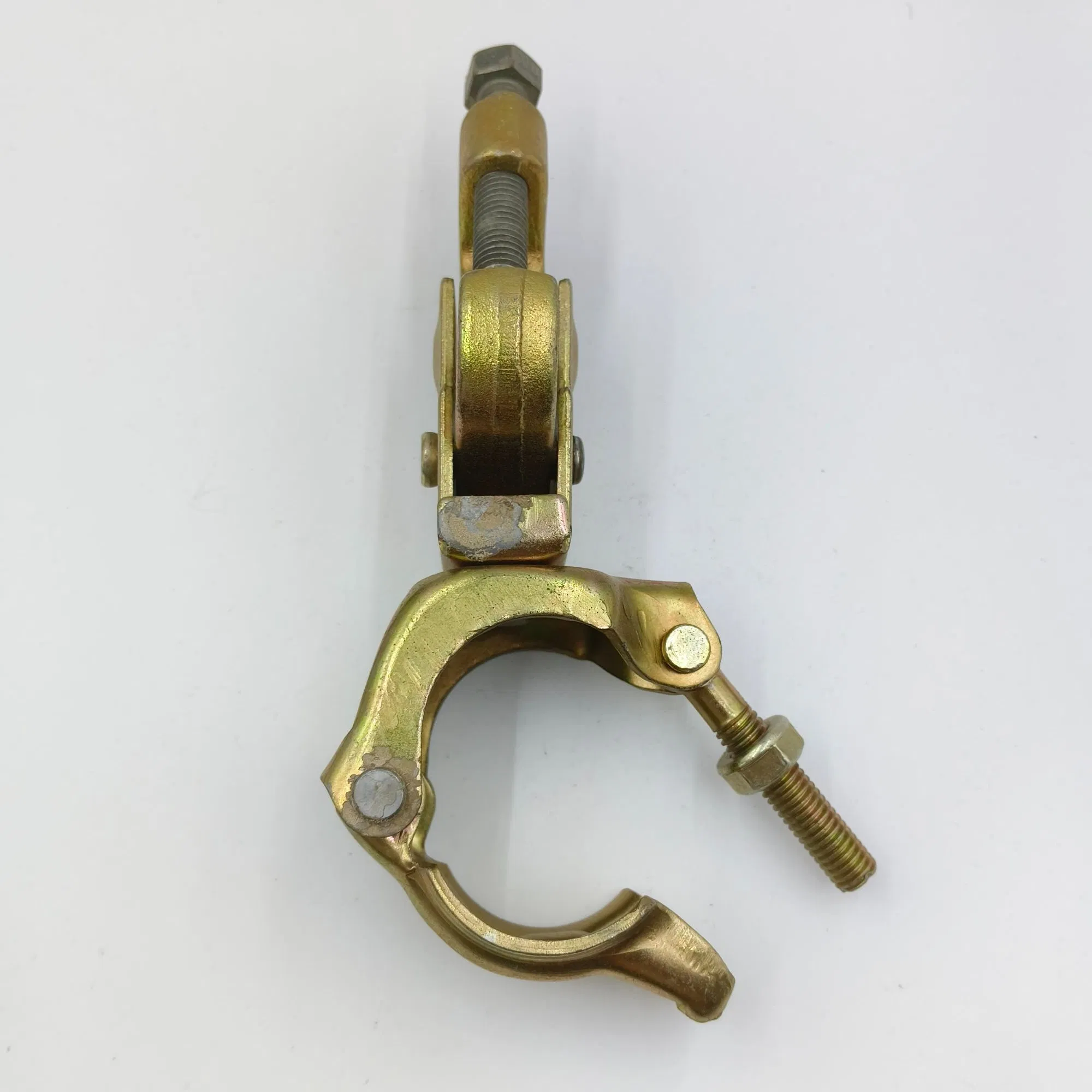

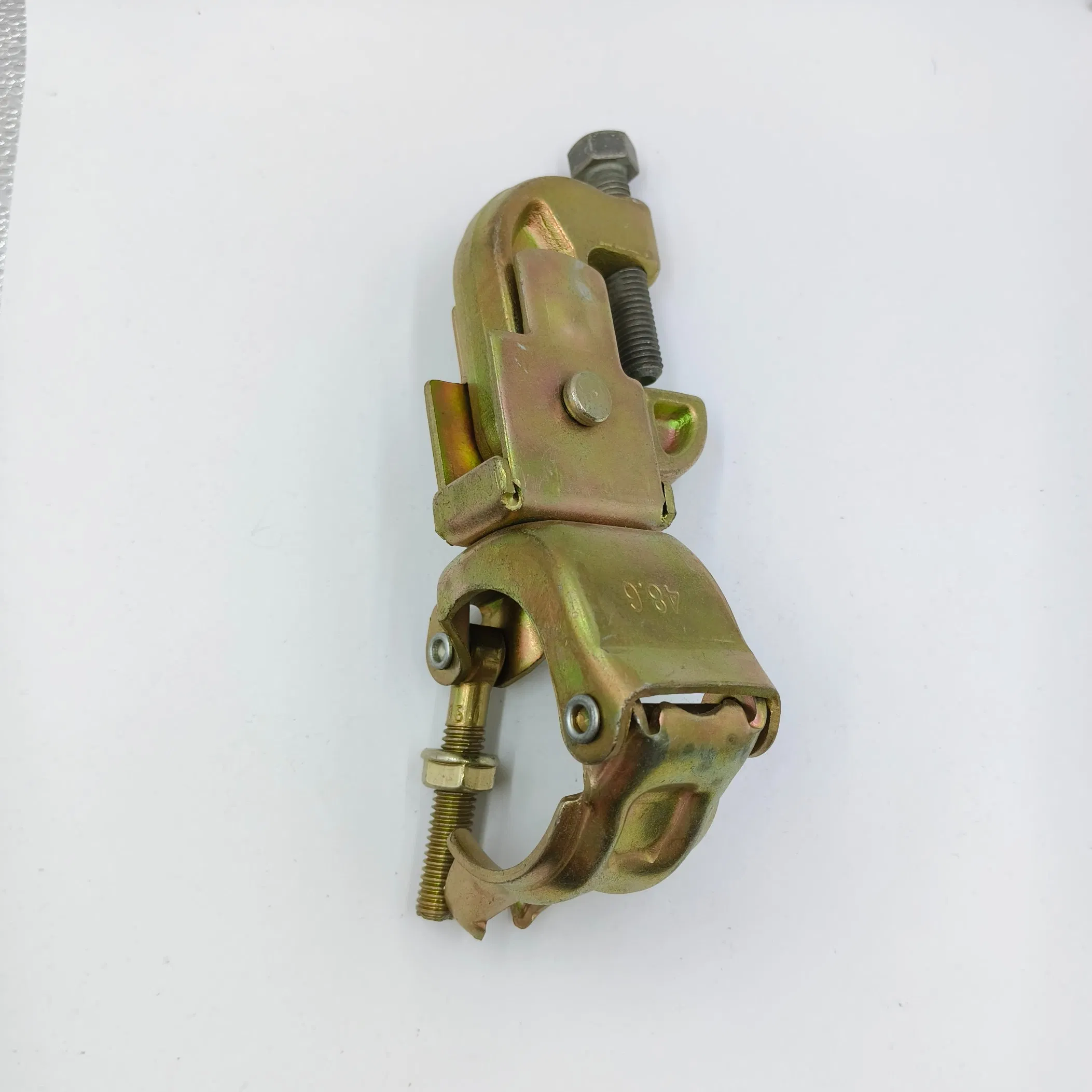

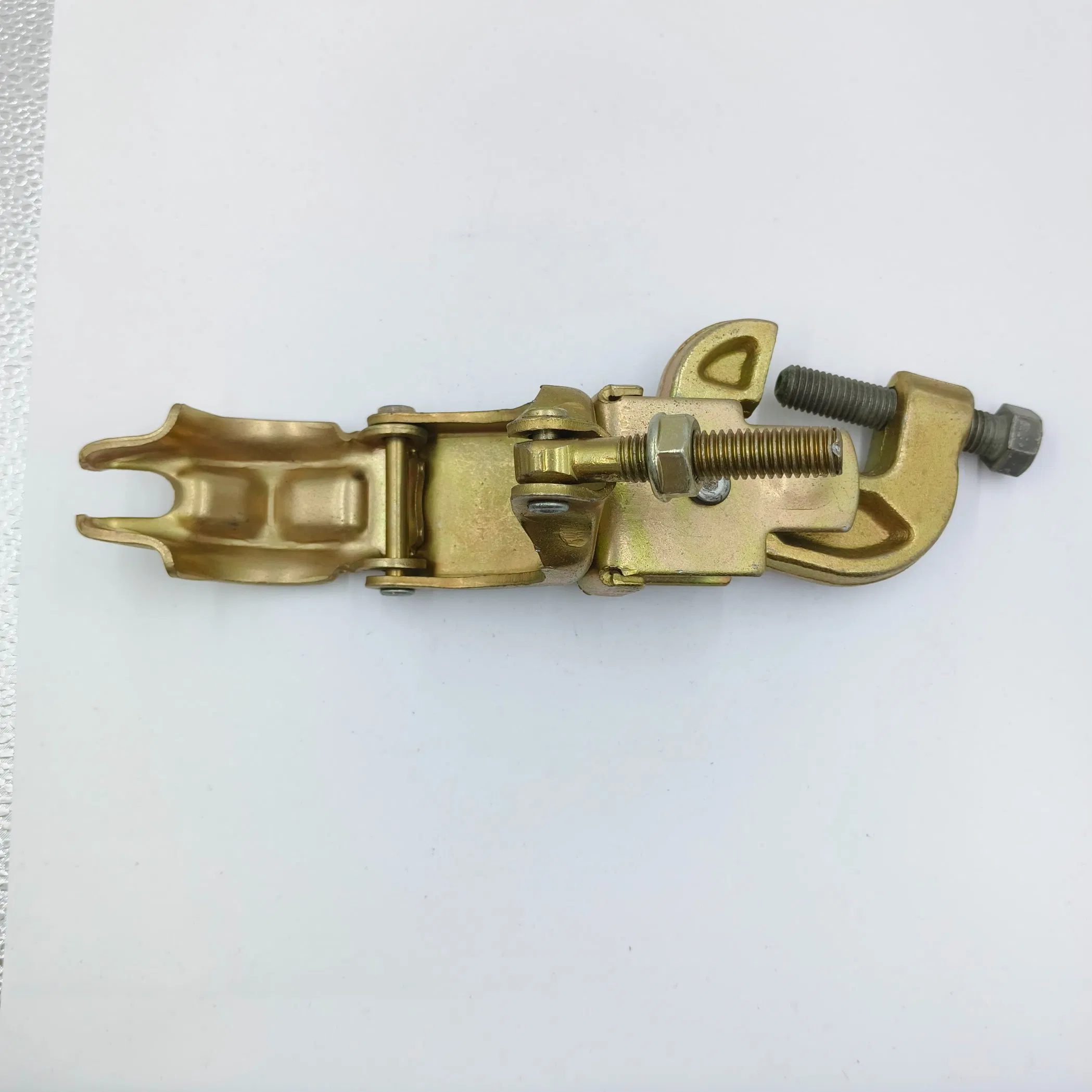

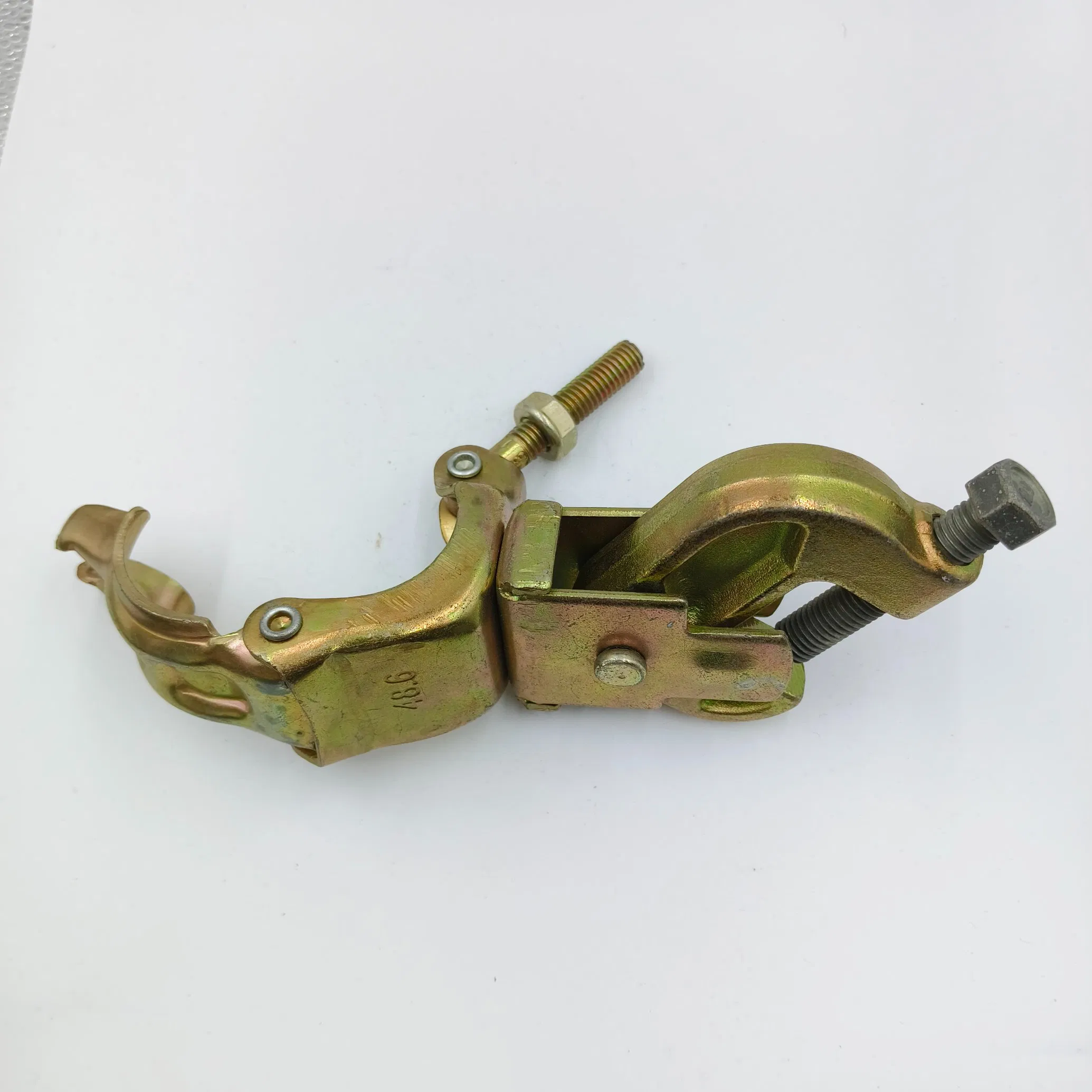

Industrial-Style Scaffold Girder Couplers & Gravlock Light Beam Clamps

Scaffold Beam Clamp, also known as a Girder Coupler, is specifically designed for connecting scaffolding pipes to steel beams or other structural sections. It ensures a secure and stable connection between the scaffold framework and the building's structural beams. These are typically used in pairs for maximum safety.

Scaffold Girder Coupler
Key Features & Advantages
  • High Skid Resistance: Large contact area between the steel tube and coupler.
  • Superior Crack Resistance: Drop forged from Q235 steel for high strength and toughness.
  • Corrosion Protection: Treated with electro-galvanization or hot-dip galvanizing.
  • Easy Operation: Simple to assemble and dismantle, improving construction efficiency.
  • Durability: High-strength T-bolts (Grade 8.8) ensure long-term stability.
  • Reusability: Designed for multiple uses across different project sites.

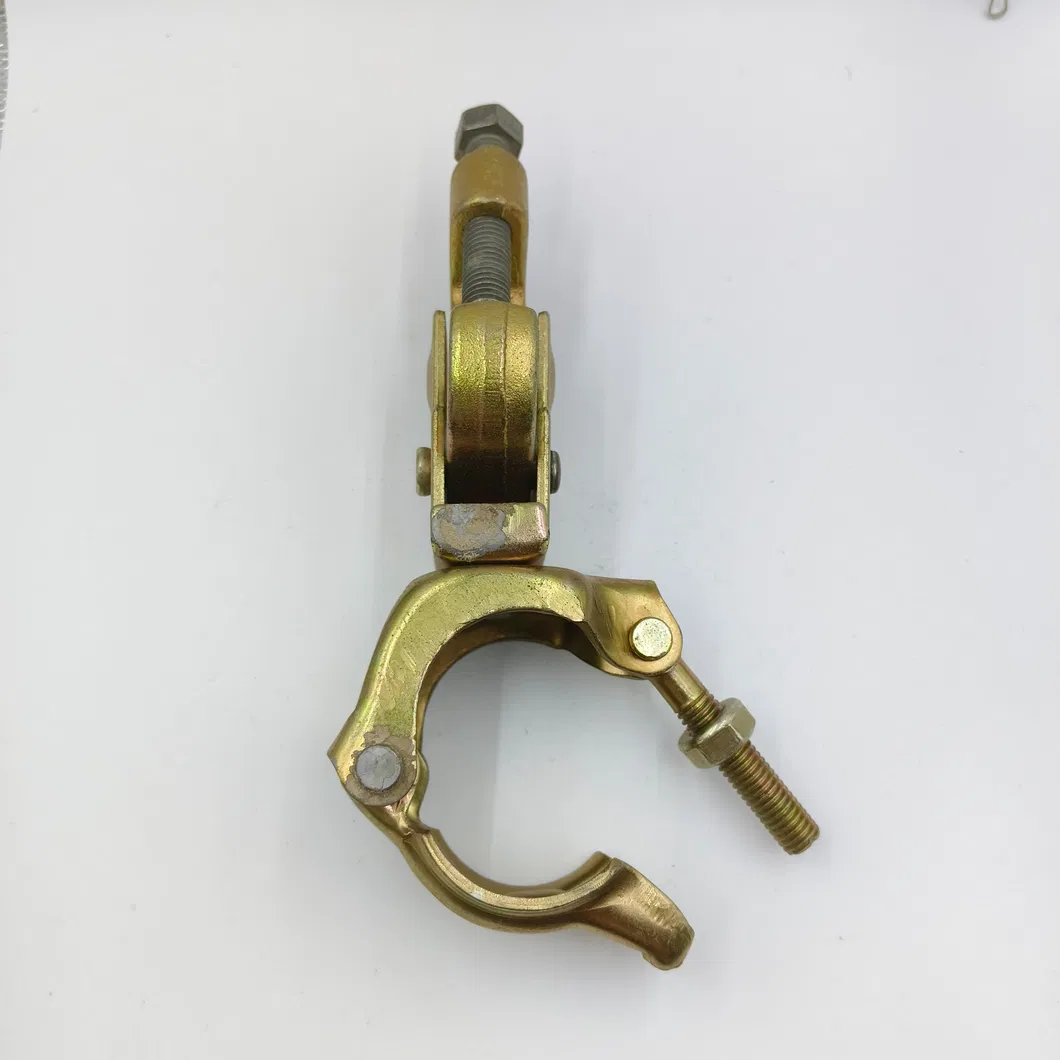

Coupler Detail 1
Coupler Detail 2
Coupler Detail 3
🌐 Application Scenarios
  • Internal and external grid scaffolding for high-rise buildings.
  • Support frameworks for bridges, viaducts, tunnels, and halls.
  • Mobile work platforms for hull repair and electromechanical installation.
  • Temporary viewing stands and event stages.
  • On-site warehouses, sheds, and temporary dormitories.
Application Scenario
📊 Product Parameters
Product NameScaffolding Beam Clamp / Girder Coupler
MaterialSteel Q235
ProcessForged / Pressed
Surface TreatmentZinc Plate or Hot Dipped Galvanized
StandardEN74 / BS1139 / AS 1576.2
SpecificationsFor 48.3mm Tube
T-boltM12, Grade 8.8
PackagingWoven bags + Steel pallet or Ton bag
📏 Available Coupler Sizes
Double Coupler Swivel Coupler
48.3mm * 48.3mm48.3mm * 48.3mm
38mm * 48.3mm38mm * 48.3mm
48.3mm * 60.3mm48.3mm * 60.3mm
48.6mm * 48.6mm48.6mm * 48.6mm
Quality Assurance & Certifications
Certifications
🏢 Company Profile

With 16 years of industry experience, we are a leading enterprise in scaffolding production and sales. Our products carry EN, BS, and AS certifications and are widely exported to the United States, United Kingdom, Australia, UAE, Saudi Arabia, and Singapore.

Our core range includes Ringlock systems, aluminum scaffolding, and a comprehensive array of accessories. We provide complete design solutions for seating systems and edge protection. By controlling the entire process from raw material sourcing to final packaging, we ensure every order meets the highest quality standards and strict delivery schedules.

Factory Image 1
Factory Image 2
📦 Packaging & Shipping
Packaging 1
Packaging 2
Frequently Asked Questions
What about your after-sales service?
All products are fully tested before dispatch, and we maintain a complete traceability system. If any issues arise, please provide photos or videos, and we will offer replacements or reasonable compensation based on mutual agreement.
What payment terms do you accept?
We primarily accept T/T and L/C. Other payment terms are negotiable depending on the order requirements.
What is your Minimum Order Quantity (MOQ)?
Generally, we accept one full container load. However, for specialized products, we are happy to discuss and accommodate specific order quantities with our customers.
Can we customize our company logo on the products?
Yes, we can apply permanent logos or high-quality stickers to the products according to your specific branding requirements.
How fast can you complete an order?
Once an order is confirmed, we establish a production schedule that aligns with the customer's needs. All production phases are monitored to ensure we meet the agreed-upon timeline.
Do you provide engineered drawings?
Yes, our professional engineering team is capable of designing and providing technical drawings for even the most challenging scaffolding access solutions.
