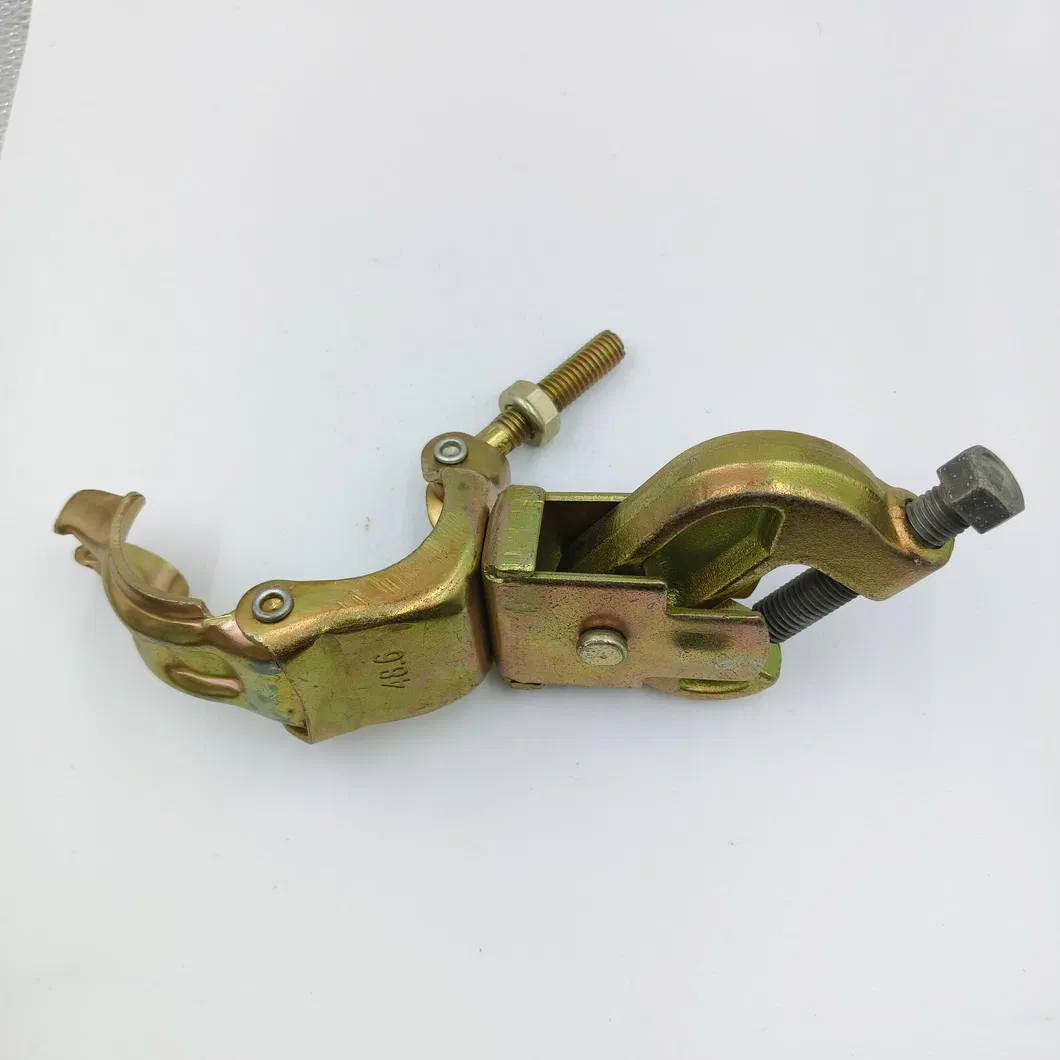

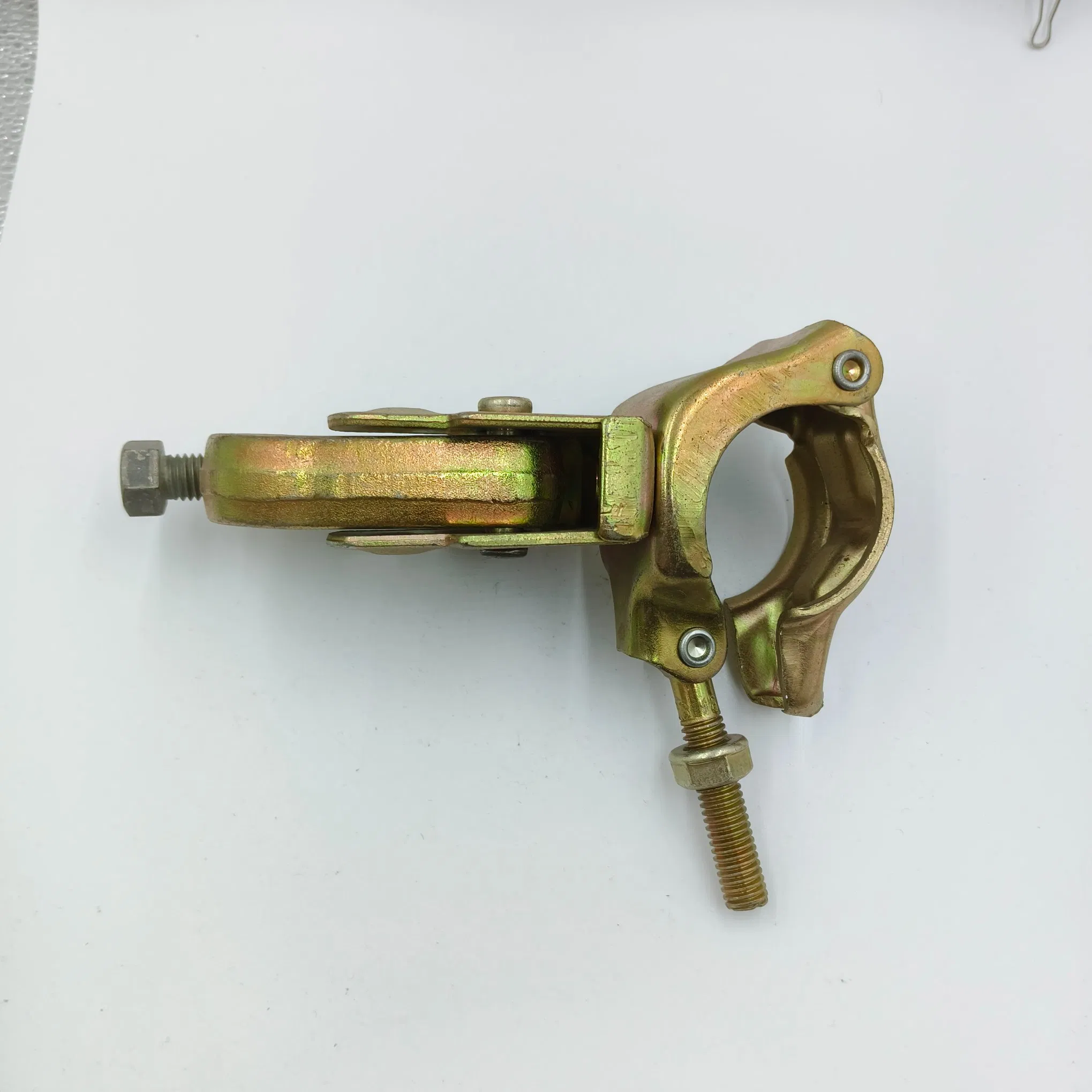

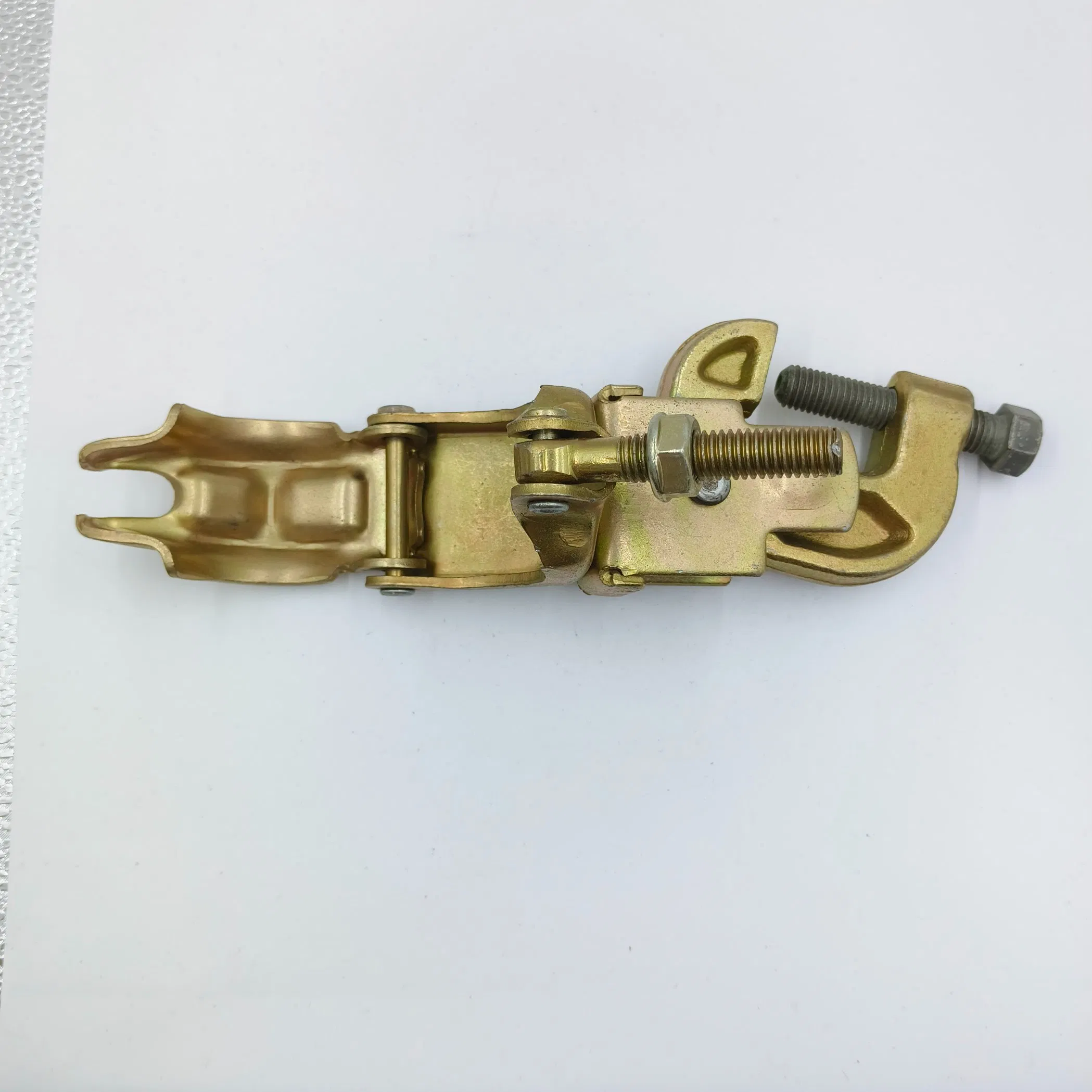

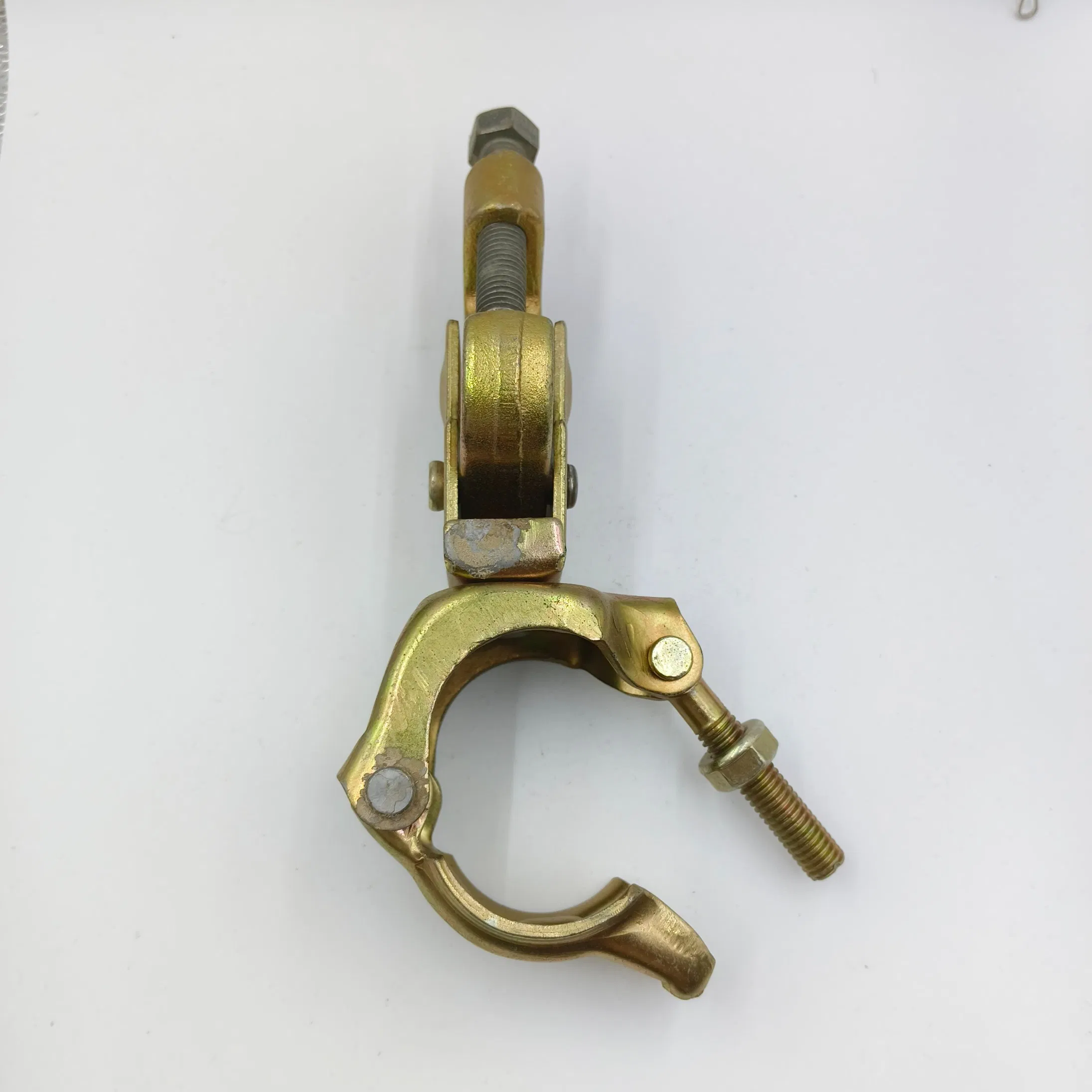

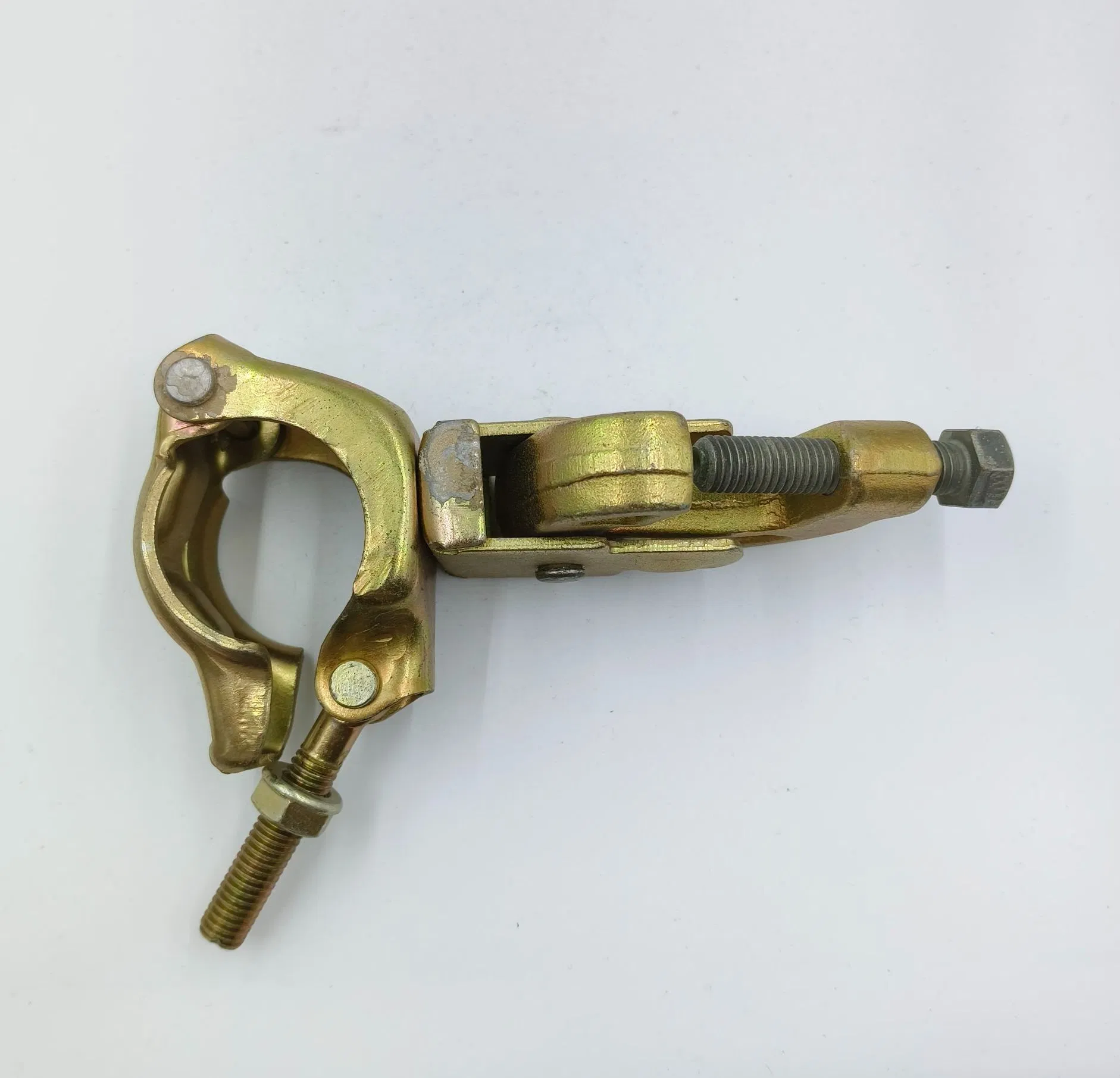

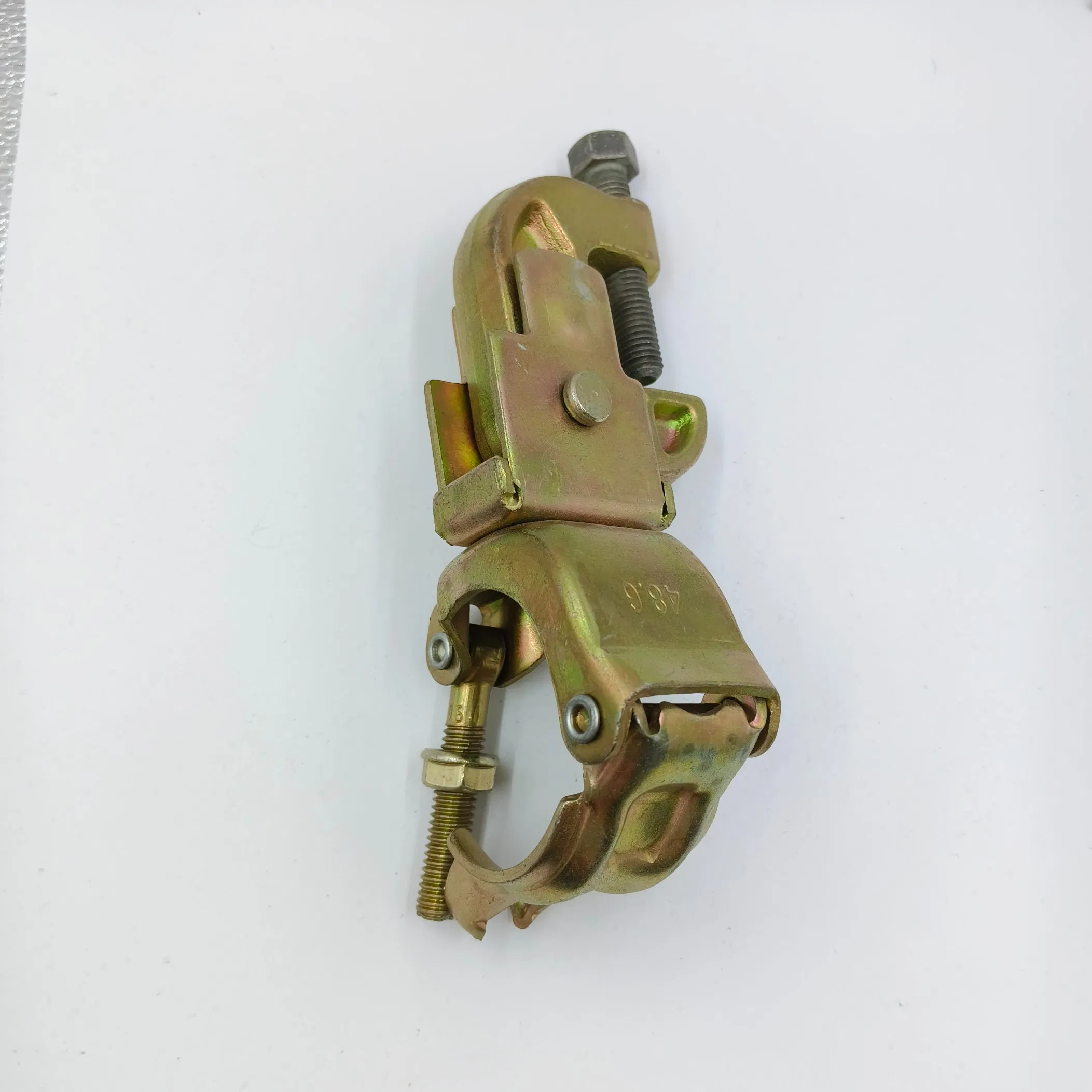

Scaffold Beam Clamp (also known as Girder Coupler) is designed for connecting scaffolding pipes to steel beams or other structural sections. It provides a secure and stable connection between scaffolding and beams. These units are typically used in pairs for maximum safety.

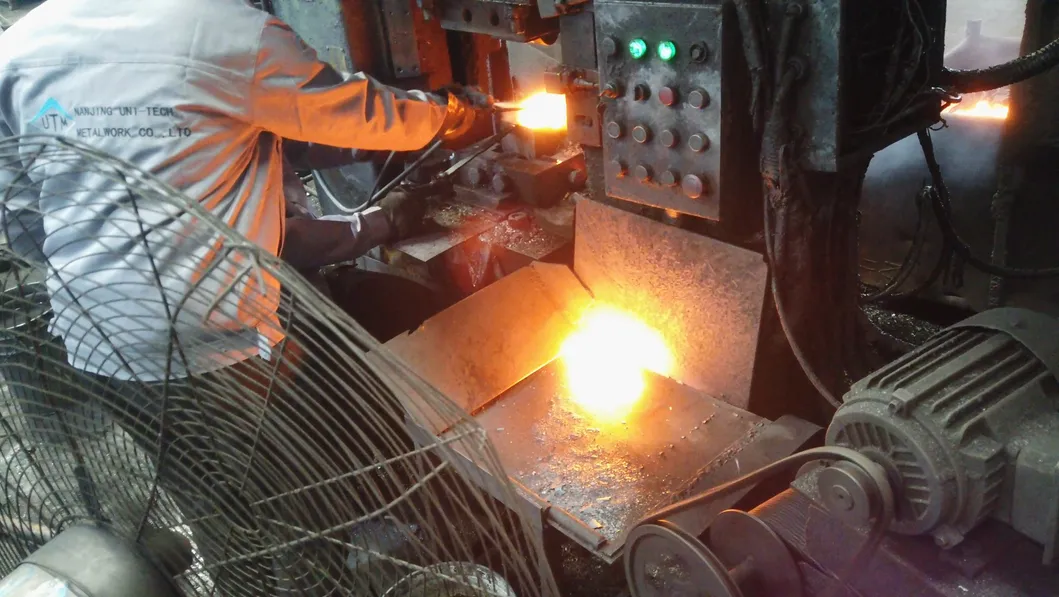

The connection between the forging coupler and the main beam and auxiliary beam of the scaffold is fixed by a hook and locking device, making it ideal for large-span engineering construction. Forging couplers are easy to assemble and disassemble, allowing for multiple reuses to reduce construction costs.
| Parameter | Details |
|---|---|
| Name | Scaffolding Beam Clamp / Girder Coupler |
| Material | Steel Q235 |
| Process | Forged / Pressed |
| Surface Treatment | Zinc Plate or Hot Dipped Galvanized |
| Standard | EN74 / BS1139 / AS 1576.2 |
| Specs | For 48.3mm tube |
| Weight | 1.01kg - 1.48kg |
| T-bolt | M12, Grade 8.8 |
| Double Coupler | Swivel Coupler |
|---|---|
| 48.3mm * 48.3mm | 48.3mm * 48.3mm |
| 38mm * 48.3mm | 38mm * 48.3mm |
| 48.3mm * 60.3mm | 48.3mm * 60.3mm |
| 48.6mm * 48.6mm | 48.6mm * 48.6mm |
| 60.3mm * 60.3mm | 60.3mm * 60.3mm |

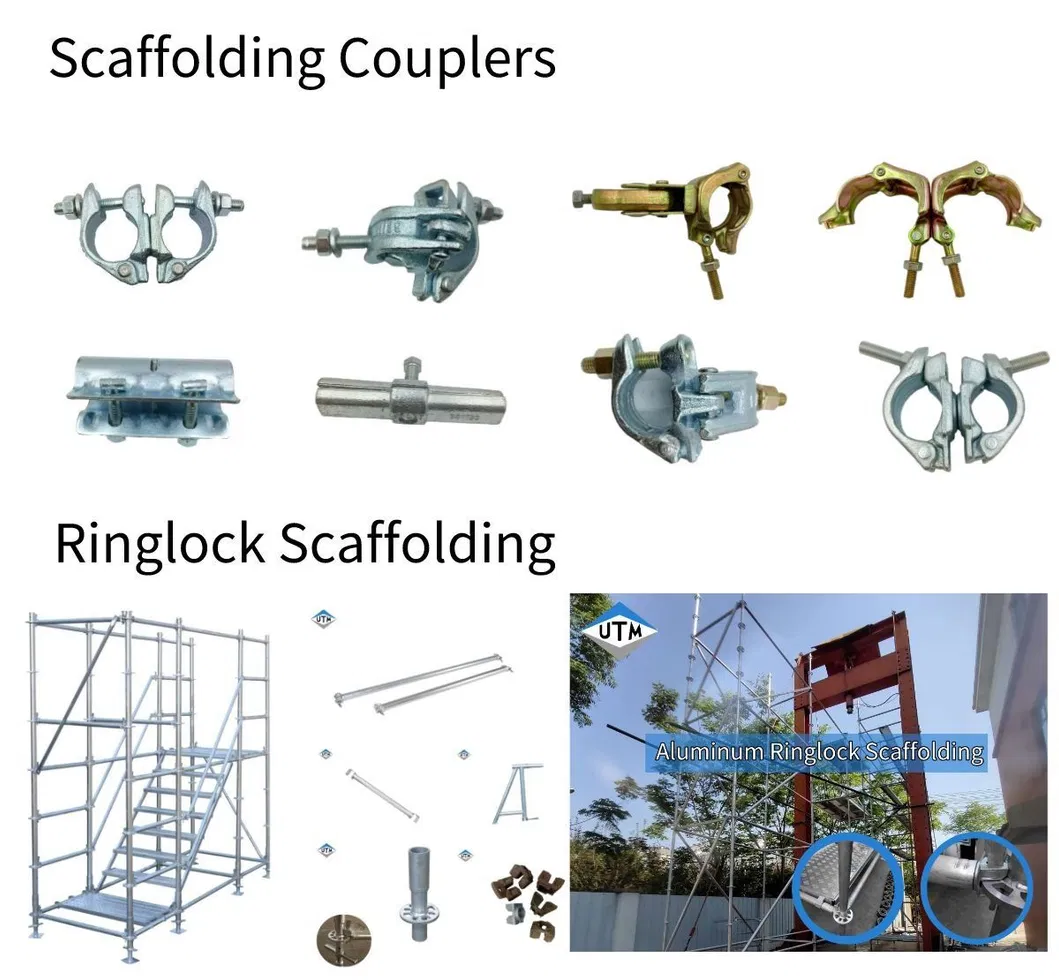

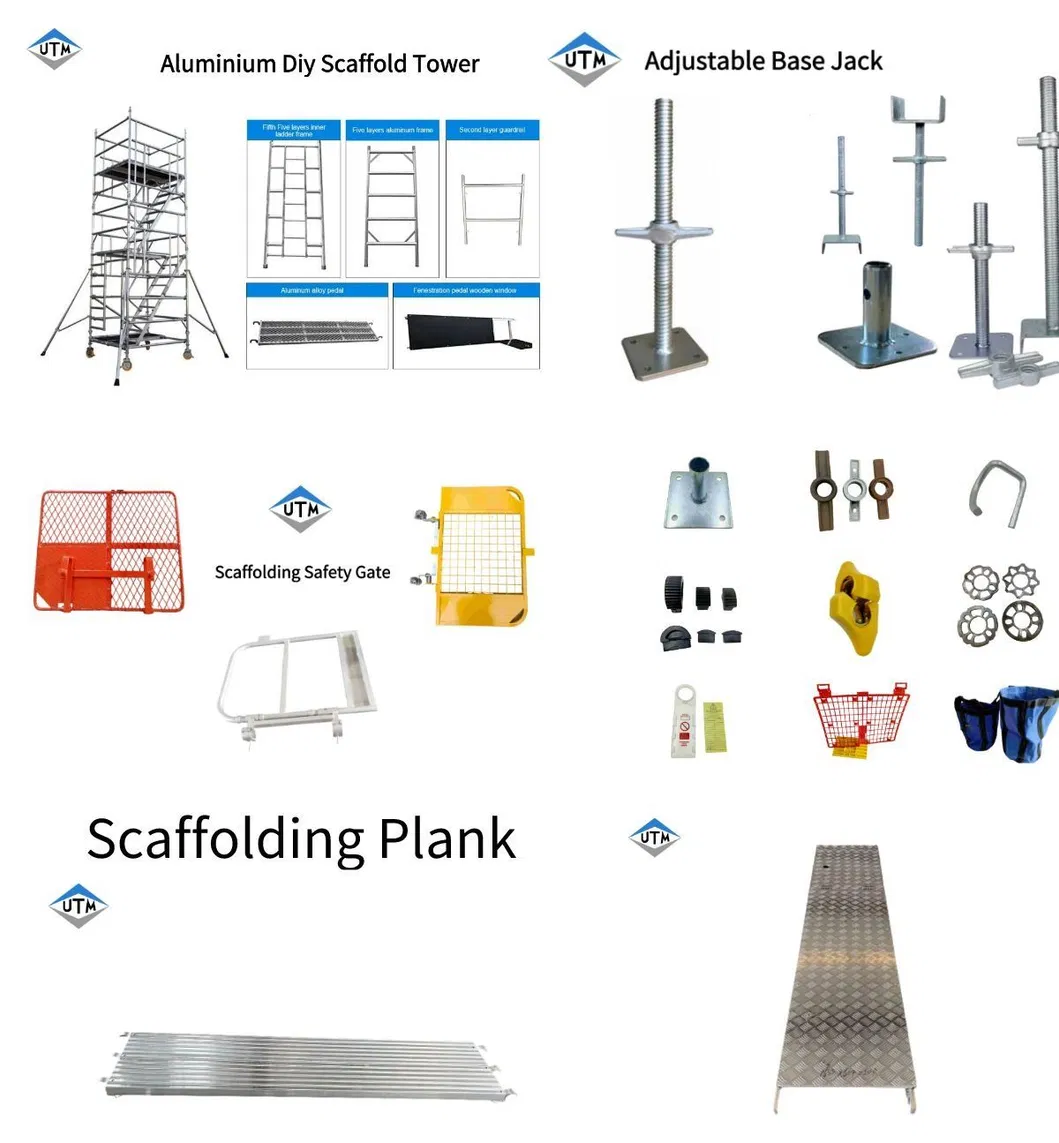

With 16 years of industry experience, our production process involves strict control from raw material supply to cutting, stamping, welding, and surface treatment. We specialize in Ringlock and Aluminium scaffold systems, couplers, cuplock systems, frames, and screw jacks. Our products hold EN, BS, and AS certificate qualifications.
