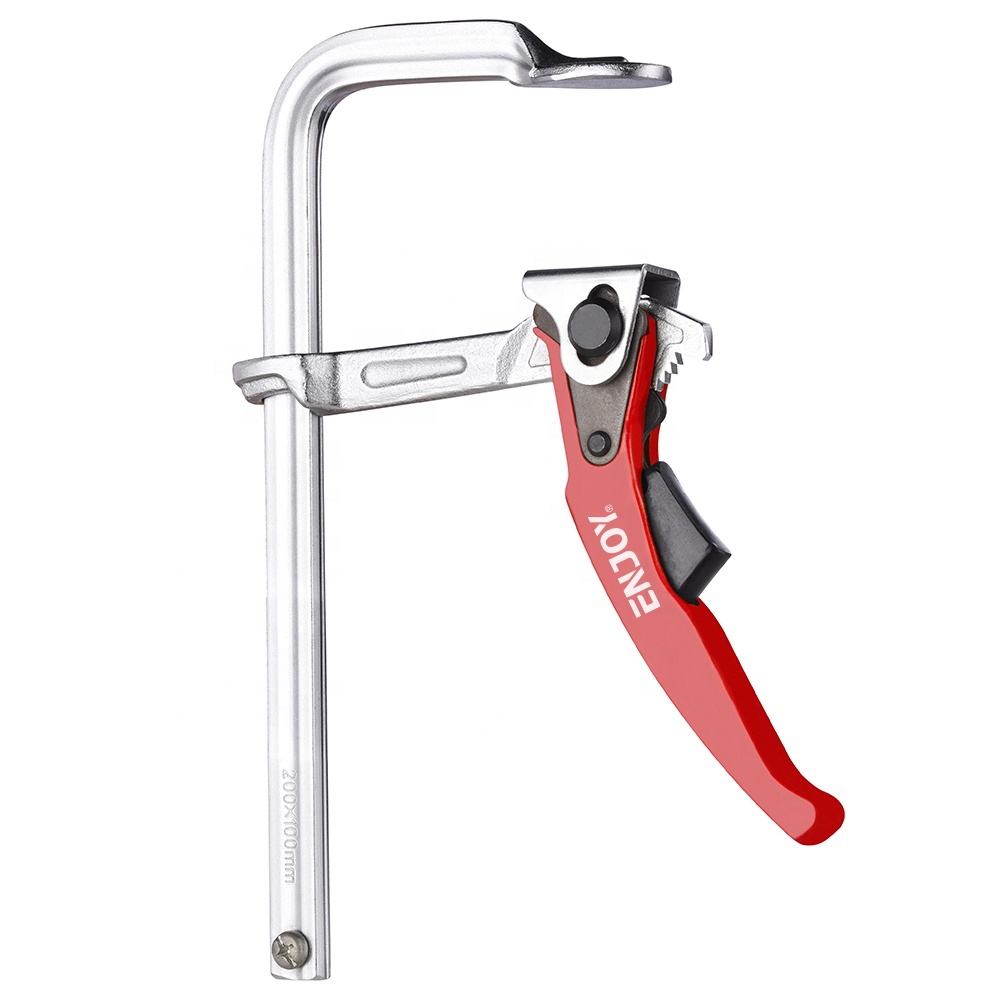

Woodworking Bar Clamp 4 Inch F Clamp Quick Ratchet Release Squeeze Clamps with 1600N Pressure Powder Coated
Woodworking Bar Clamp 4 Inch F Clamp Quick Ratchet Release Squeeze Clamps with 1600N Pressure Powder Coated
Woodworking Bar Clamp 4 Inch F Clamp Quick Ratchet Release Squeeze Clamps with 1600N Pressure Powder Coated
Woodworking Bar Clamp 4 Inch F Clamp Quick Ratchet Release Squeeze Clamps with 1600N Pressure Powder Coated
Woodworking Bar Clamp 4 Inch F Clamp Quick Ratchet Release Squeeze Clamps with 1600N Pressure Powder Coated
1 / 5
Woodworking Bar Clamp 4 Inch F Clamp Quick Ratchet Release Squeeze Clamps with 1600N Pressure Powder Coated
Woodworking Bar Clamp 4 Inch F Clamp Quick Ratchet Release Squeeze Clamps with 1600N Pressure Powder Coated
Woodworking Bar Clamp 4 Inch F Clamp Quick Ratchet Release Squeeze Clamps with 1600N Pressure Powder Coated
Woodworking Bar Clamp 4 Inch F Clamp Quick Ratchet Release Squeeze Clamps with 1600N Pressure Powder Coated
Woodworking Bar Clamp 4 Inch F Clamp Quick Ratchet Release Squeeze Clamps with 1600N Pressure Powder Coated

Woodworking Bar Clamp 4 Inch F Clamp Quick Ratchet Release Squeeze Clamps with 1600N Pressure Powder Coated

Send Inquiry

Product Description

Feature

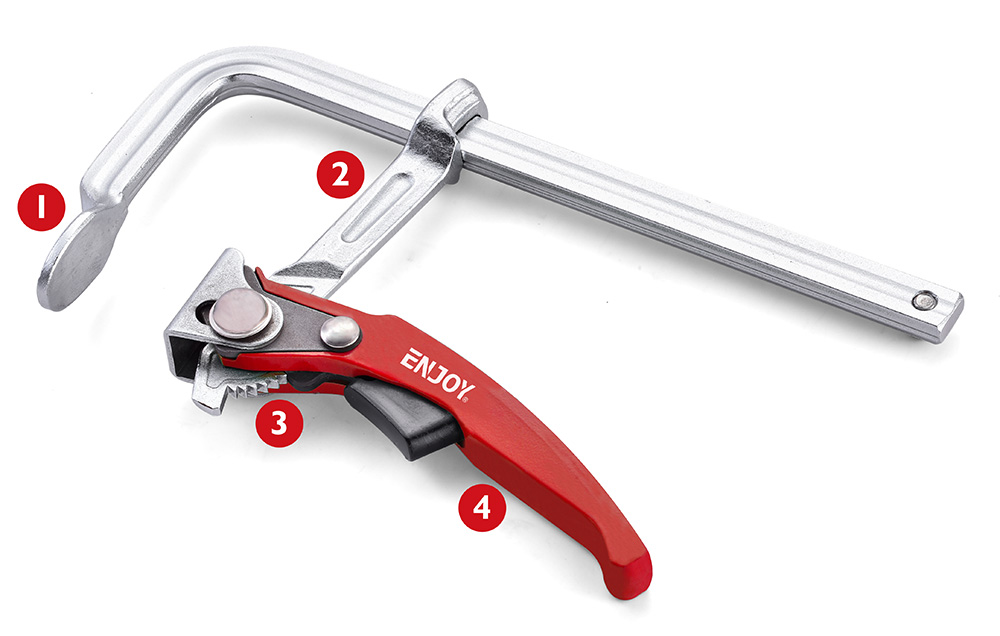

Lever Clamp Feature Overview
1

Extremely Strong

The fixed bracket and pressure plate are produced and forged from a single piece of material, so they have extraordinary torsion resistance and are not easily deformed, ensuring maximum tensile strength and robustness.

2

Stable Forged Sliding Arm

The forged sliding arm with serration has a very long service life.

3

Reliable Ratchet Device

The ratchet device ensures fast, controllable, vibration-free clamping. Ensure that the ratchet gear has a longer life.

4

Ergonomically Designed Blessing and Unlocking Handle

Ergonomically designed powder-coated clamping handle. The plastic coated non-slip unlocking handle accurately and effectively allows you to quickly clamp or release the clamping force.

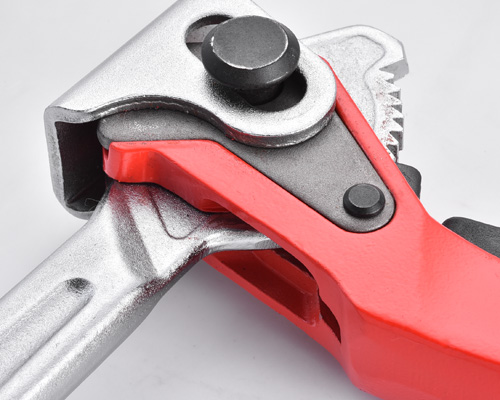

Clamping Detail View

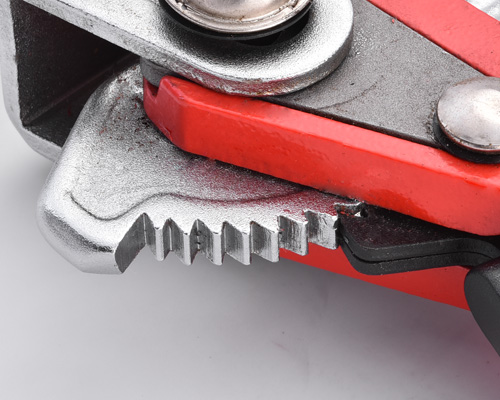

Sliding Arm Detail View

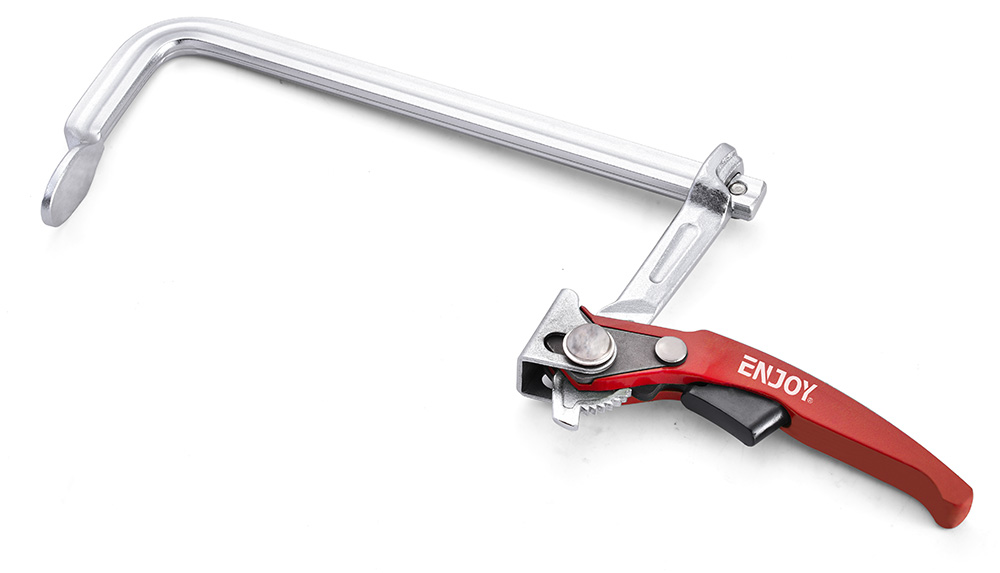

Clamping Head Detail
Specification

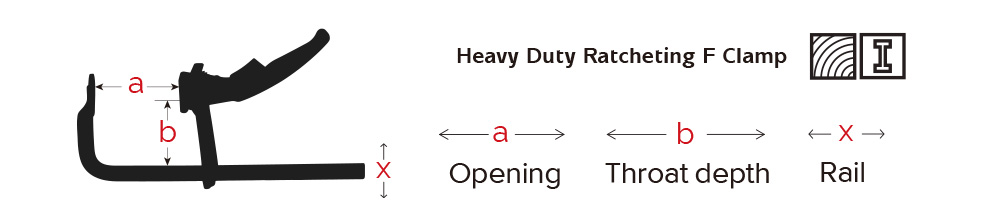

Lever Clamp Dimensions Chart
Item a b x G.W. Packaging
mm mm mm kg qty
EDF12100020 200 100 19.5*9.5 1.16 12
EDF12100025 250 100 19.5*9.5 1.25 12
EDF12100030 300 100 19.5*9.5 1.33 12
EDF12100040 400 100 19.5*9.5 1.41 12
Lever Clamp Force Test
N. 1600

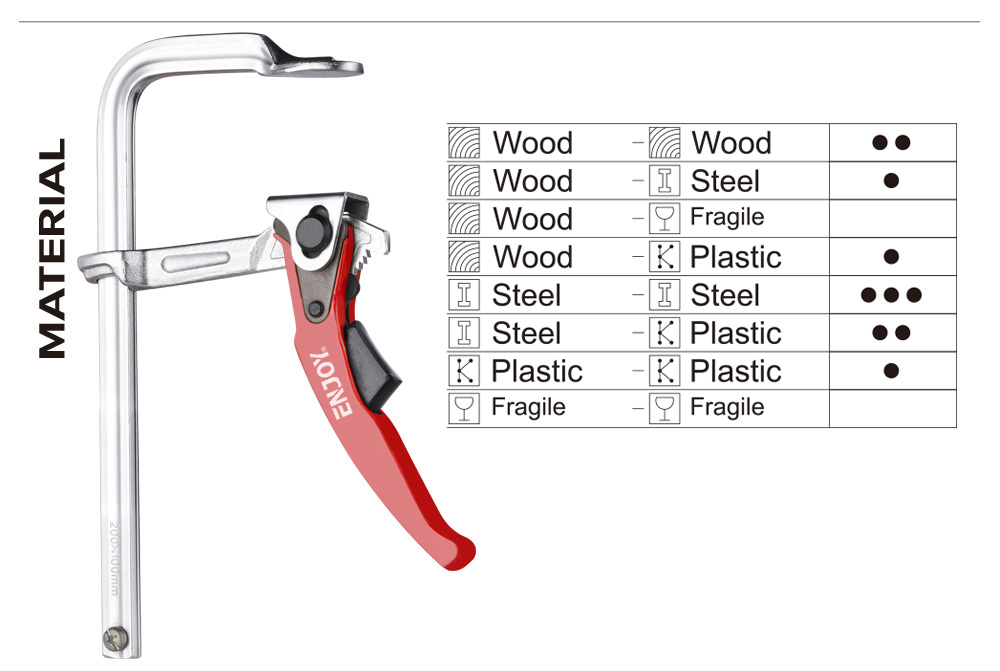

Locking Mechanism Specification
Application

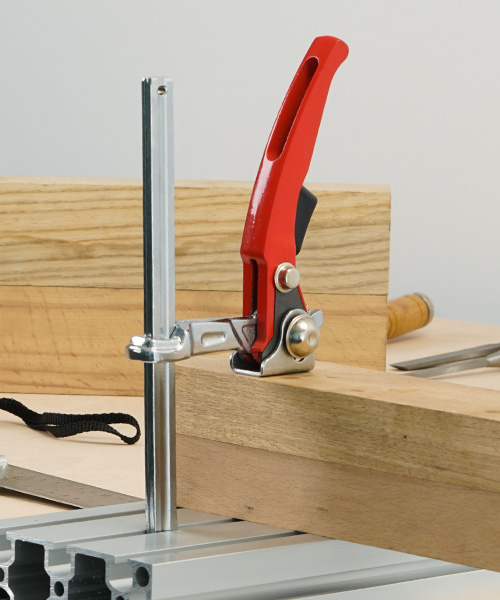

Welding application demo

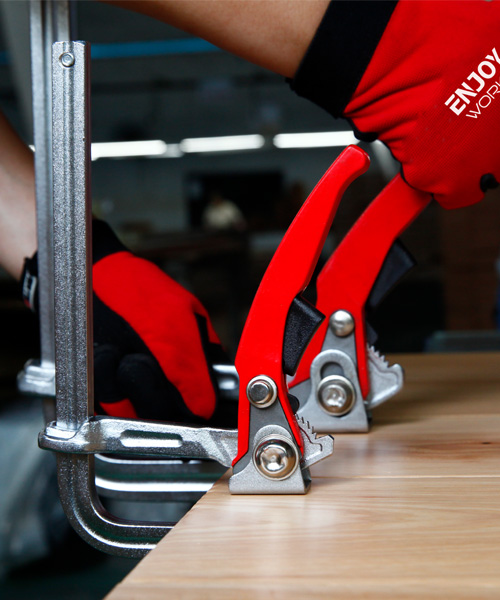

Metalworking setup application

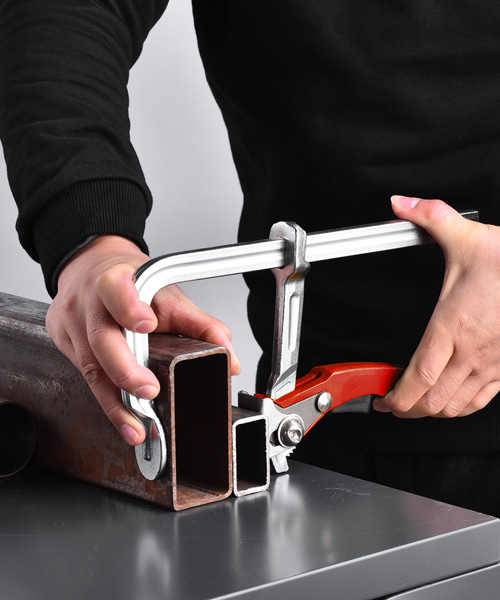

Woodworking clamping application

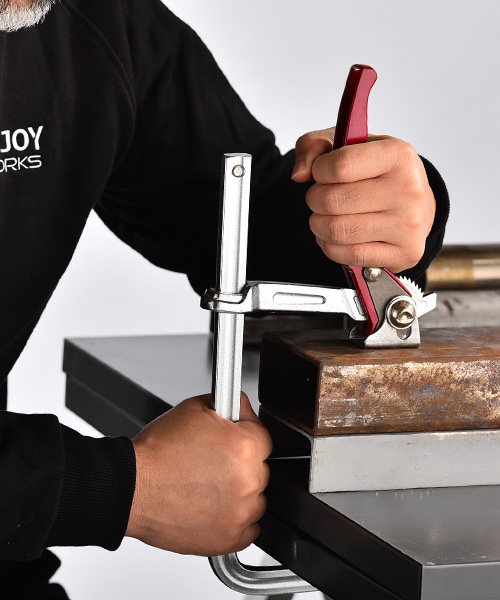

Precision assembly application
Frequently Asked Questions
What are the primary benefits of the ratchet clamping mechanism?
The heavy-duty ratchet device ensures fast, controlled, and vibration-free clamping. It provides reliable and precise pressure that won't loosen or slip, even in challenging, high-vibration work environments.
How does the single-piece forged design enhance durability?
By forging the fixed bracket and the pressure plate from a single piece of premium raw material, the structural integrity is maximized. This creates extraordinary torsion resistance, eliminates weak joints, and prevents bending under extreme loads.
What materials are the sliding arm made from?
The sliding arm is forged with high-carbon steel and features hardened precision serrations. This specific design offers a significantly longer service life and absolute grip-stability along the rail.
What ergonomic features are built into the handle?
The clamping lever is powder-coated for smooth operations, and the unlocking trigger is wrapped with a non-slip plastic sleeve. This dual design ensures maximum operator comfort and allows for quick, effortless pressure releases.
What applications are these lever clamps best suited for?
These professional lever clamps are perfect for welding, fabrication, high-precision woodworking, machinery assembly, and any industrial operation that demands robust, fast-locking, and vibration-resistant clamping force.
