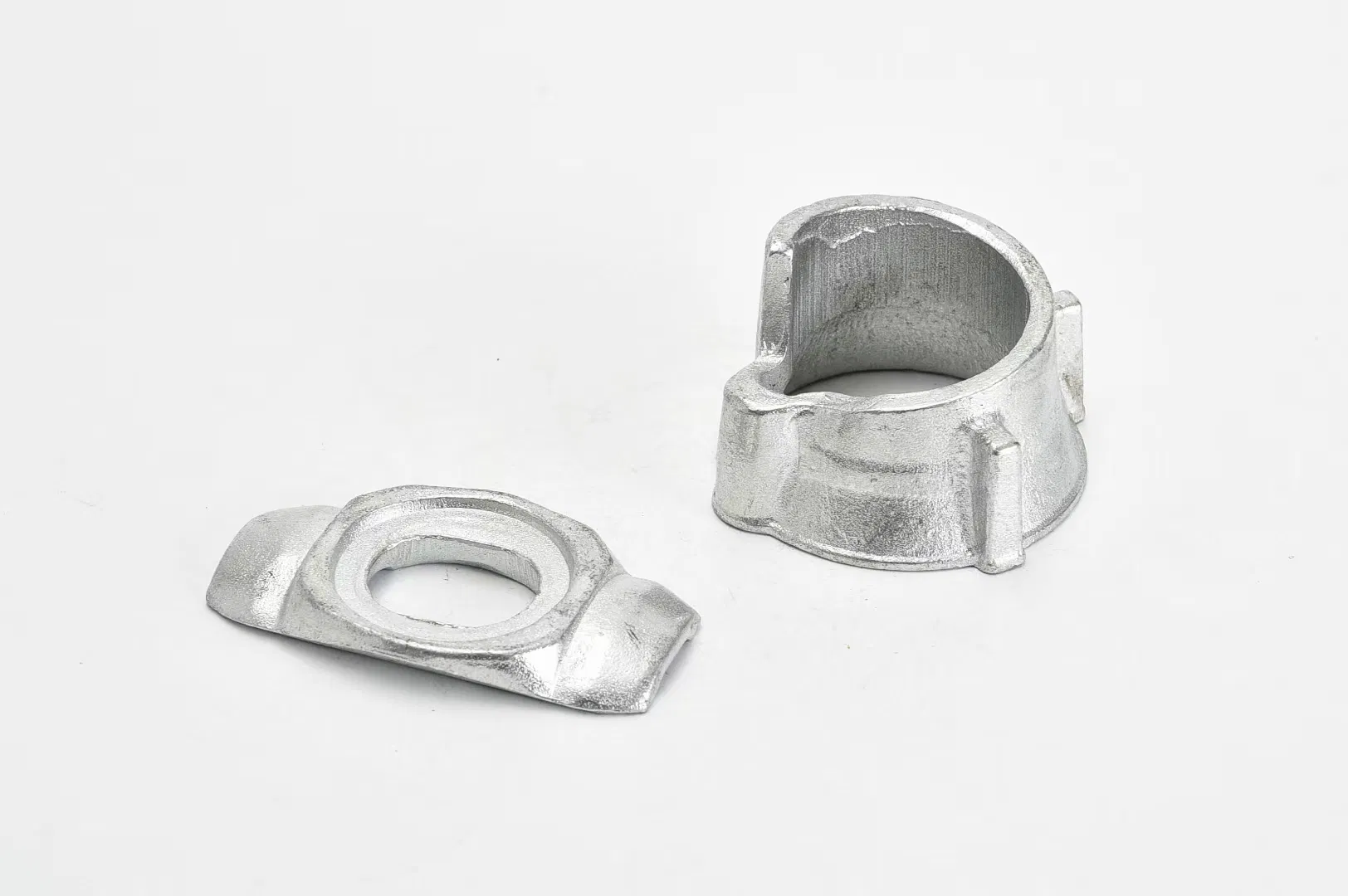

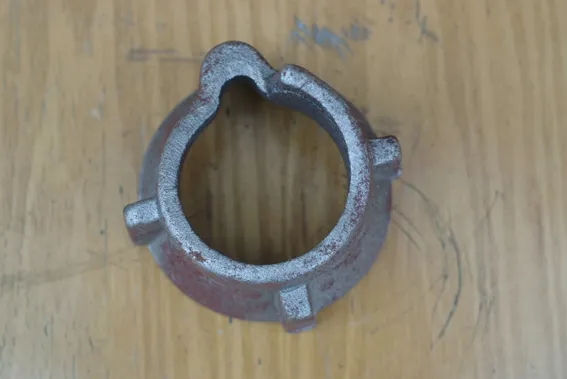

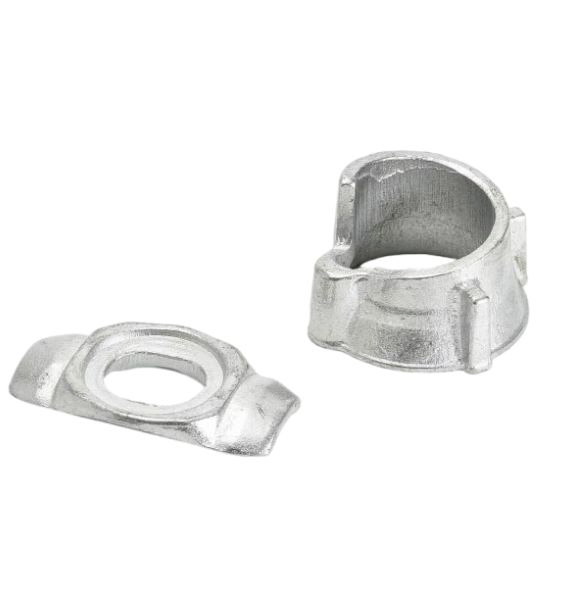

The Cuplock Scaffolding Top Cup is a fundamental component in the construction field. It plays a crucial role in securely connecting vertical standards and horizontal ledgers in cuplock scaffolding systems.

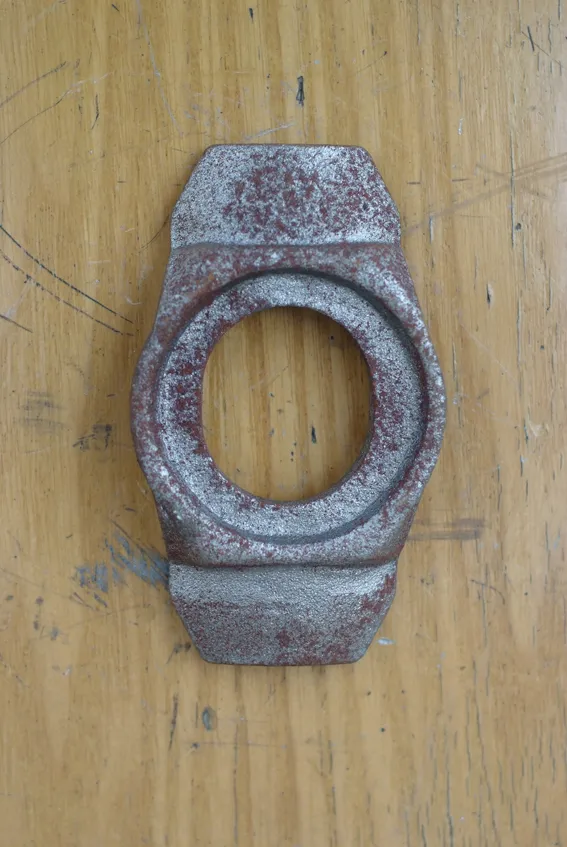

The cuplock blades are welded ends of cuplock scaffolding ledger, which can be inserted in the top cups of the cuplock standard.
| Material | Steel Q235 |
|---|---|
| Surface Treatment | Hot Dip Galvanized |
| Standard | EN74 / BS1139 / AS1576 |
| Certificate | CE Certificate / SGS |
| Payment Term | TT, L/C |

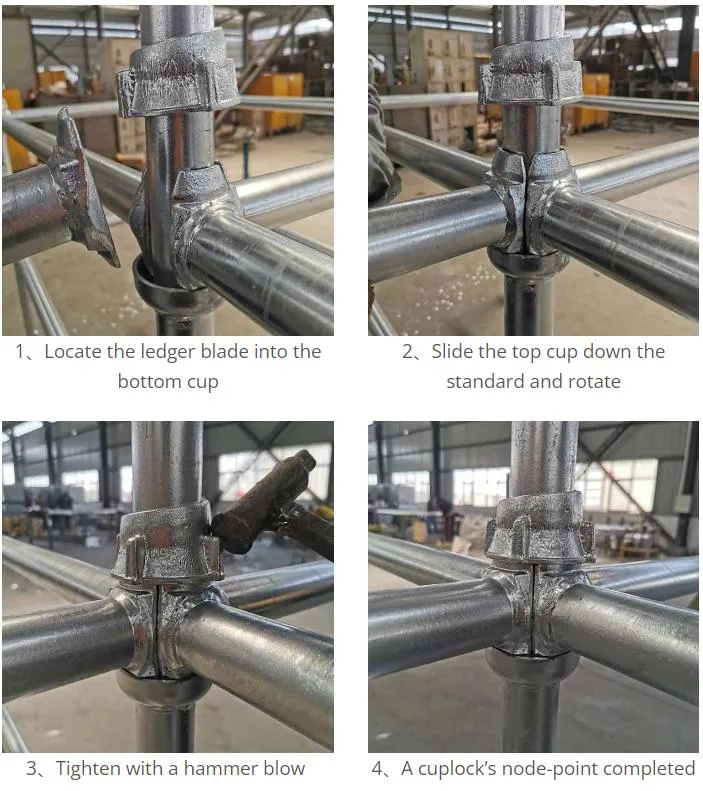

Cuplock scaffolding is a mature system. It mainly composes of standard, ledger, brace, plank and so on. The Cuplock node is revolutionary, making it faster and easier to erect than any other scaffolding. It uses the "Cup" and "Blade" to lock the vertical and horizontal together by rotating the top cup.
On the standard each top cup has a limited position pin. This small part determines whether the ledger can be locked tightly. It must be at right place, not too up or too down.
| Cuplock Features | Details |
|---|---|
| Easy to Stand | No nut and bolt or wedge, just lock the blade into cup at each node. |
| Simple | Fast and simple to erect with only four component fastenings. |
| Light Weight | Manufactured using 3.2mm high grade steel, 20% lighter than standard 4mm tube. |
| Economical | System consists of only three main components. |
| Fast | 30%-50% faster than traditional scaffolding systems. |
| Durable | Hot-Dip-Galvanized provides low maintenance and long life. |
| Versatile | Suitable for Facade, Shoring, Circular, Birdcages, Staircases, and Mobile Towers. |

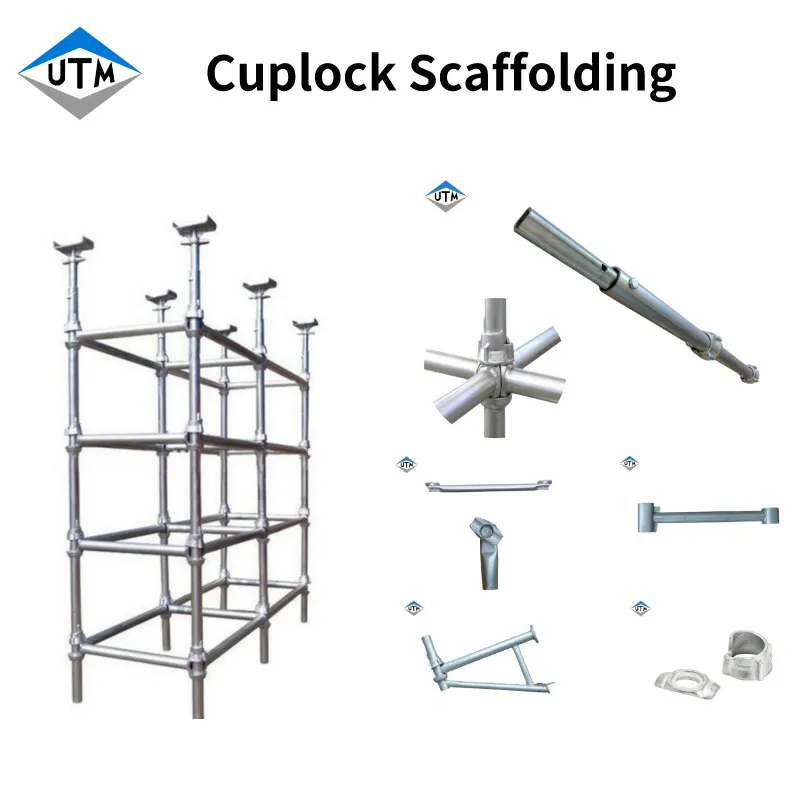

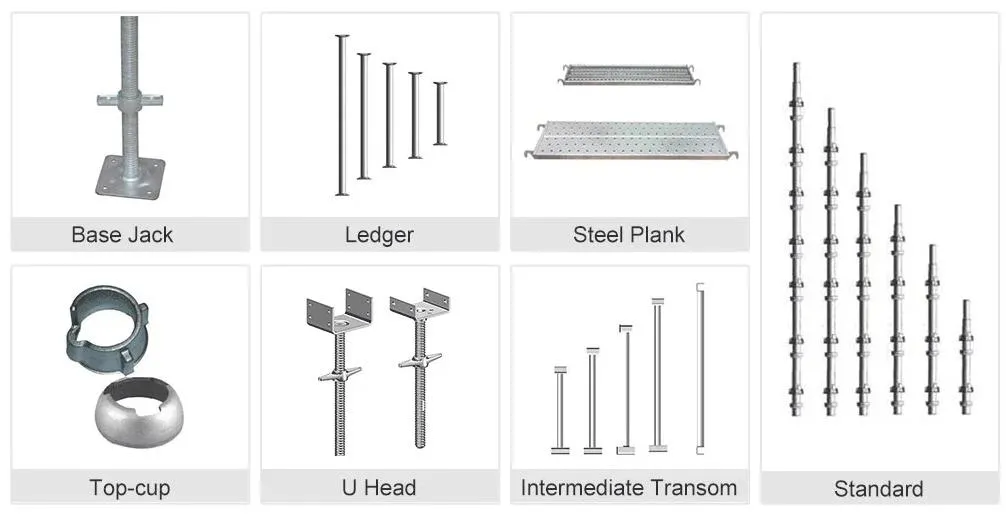

System includes Cuplock Vertical/Standard, Ledger/Horizontal, Brace, Transom, Hop-Up Bracket and various accessories.
Application Scenarios: Used in building construction, advertising, painting ceilings, cleaning, repairing, bridging frames, curved frames, and stage racks.
An alternative lightweight system featuring a reasonable joint structure and simple production process.
| Easy to Stand | Insert plugs into corresponding taper holes and tap tightly. |
|---|---|
| Material | High-strength aluminum alloy, lighter than steel tubes. |
| Speed | 30%-50% faster than traditional methods. |
